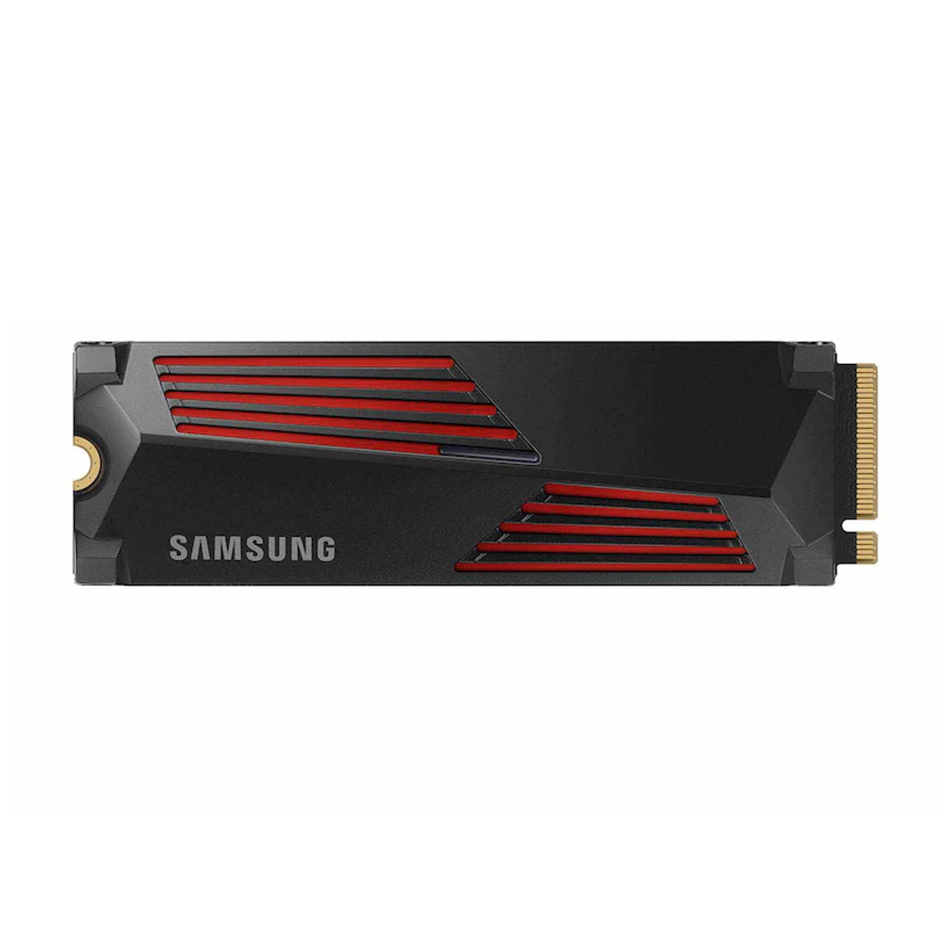

SAMSUNG 990 PRO With Heatsink PCIe 4.0 NVMe SSD - 4TB

SAMSUNG 990 PRO PCIe 4.0 NVMe M.2 SSD With Heatsink PS5 Compatible - 4TB

Blazing speed. Cool victory.

Consider this a cheat code. Our Samsung 990 PRO Gen4 with Heatsink SSD helps you reach near max performance² with lightning-fast speeds and Heatsink for improved temperature control.

Reach the next level

Gen4 M.2 Internal Solid State Drive with Heatsink

Got a need for speed? Gen4 steps up to the arena with faster transfer speeds and high-performance bandwidth—all while keeping things cool. With a more than 55% improvement in random performance compared to 980 PRO, it’s fully here for heavy computing and faster loading.

The fastest SSD from the world's #1 flash memory brand¹

Read/Write Speeds up to 7,450/6,900 MB/s

The speed you need for any occasion. And with read and write speeds up to 7450/6900 MB/s² you’ll reach near max performance of PCIe® 4.0³ powering through for any use. Our fastest data-transfer speeds dare to zoom past the finish line for the ultimate experience.

Play without limits

Storage Capacities from 1TB to 2TB

Give yourself some space with storage capacities from 1TB to 4TB. Sync all your saves and reign supreme in gaming, video editing, data analysis and more.

Made with PS5™ in mind

Integrated heatsink and PS5 Compatible

Power through all your go-to games and avoid the sudden performance drops. The ultra-slim Integrated Heatsink is designed to dissipate heat from your device to stabilize its temperature and prevent performance issues. It’s compatible with your PlayStation® 5 and PCI-SIG® D8 standard desktops and laptops⁴—so you get uninterrupted play on your favorite platforms.

Power Efficiency

Save the power for your performance. Get power efficiency all while experiencing up to 50% improved performance per watt over the 980 PRO.⁵ It makes every move more effective with less consumption.

Unlock the full potential of 990 PRO

Samsung Magician Software

Get the most out of your SSD with Samsung Magician's advanced yet intuitive optimization tools. Monitor drive health, protect valuable data, receive important updates and set up LED color combinations for your 990 PRO with Heatsink. It's your personal SSD toolkit.

World's No. 1 Flash Memory Brand

Experience the performance and reliability that you can only get from the world's number one brand  for flash memory since 2003.¹ All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.

Specifications

General Feature

Application

• Client PCs, Game Consoles

Capacity

• 4,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Interface

• PCIe Gen 4.0 x4, NVMe 2.0

Dimension (WxHxD)

• Max 3.16 x Max 0.99 x Max 0.35 inches (with heatsink) (Max 80.15 x Max 25 x Max 8.88mm (with heatsink))

Weight

• Max 0.062 lbs (Max 28.0g Weight)

Form Factor

• M.2 (2280)

Storage Memory

• Samsung V-NAND TLC

Controller

• Samsung in-house Controller

Cache Memory

• Samsung 4GB Low Power DDR4 SDRAM

Performance

• Sequential Read

            Up to 7,450 MB/s * Performance may vary based on system hardware & configuration

• Sequential write

            Up to 6,900 MB/s * Performance may vary based on system hardware & configuration

•  Random Read (4KB ,QD32)

             Up to 1,600,000 IOPS * Performance may vary based on system hardware & configuration

• Random Write (4KB ,QD32)

            Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration

• Random Read (4KB ,QD1)

            Up to 22,000 IOPS * Performance may vary based on system hardware & configuration

• Random Write (4KB ,QD1)

            Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

Type

Interface

• PCIe Gen 4.0 x4, NVMe 2.0

Environmental Specs

Operating Temperature

• 32°F - 158°F (0 - 70 ℃ Operating Temperature)

Shock

• 1,500 G & 0.5 ms (Half sine)

Software

• Management SW
• Magician Software for SSD management

Special Feature

TRIM Support

• Supported

S.M.A.R.T Support

• Supported

GC (Garbage Collection)

• Auto Garbage Collection Algorithm

Encryption Support

• AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

WWN Support

• Not supported

Device Sleep Mode Support

• Yes

Environment

• Average Power Consumption (system level)

          *Average: 6.5 W *Maximum: 8.6 W (Burst mode)* Actual power consumption may vary depending on system hardware & Configuration

• Power consumption (Idle)
• Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage

• 3.3 V ± 5 % Allowable voltage

Reliability (MTBF)

• 1.5 Million Hours Reliability (MTBF)

Accessories

• Installation Kit
• Not Available
