Team Group T-Force Cardea Liquid M.2 PCIe SSD,(R-3400 W-3000)-1TB
Brand
Acer
- World's first water cooling M.2 solid state drive.
- Superior performance read speed up to 3,400 MB/s[1] which can improve the speed and performance of the overall system.
- Support latest NVMe1.3 protocol.
- Support S.M.A.R.T./TRIM technology monitoring hard drive status efficiently and bring out its best performance.
- Structure design is a combination of craftsmanship and fashion.
Categories:
eam Group T-Force CARDEA Liquid M.2 PCIe SSD - 1TB

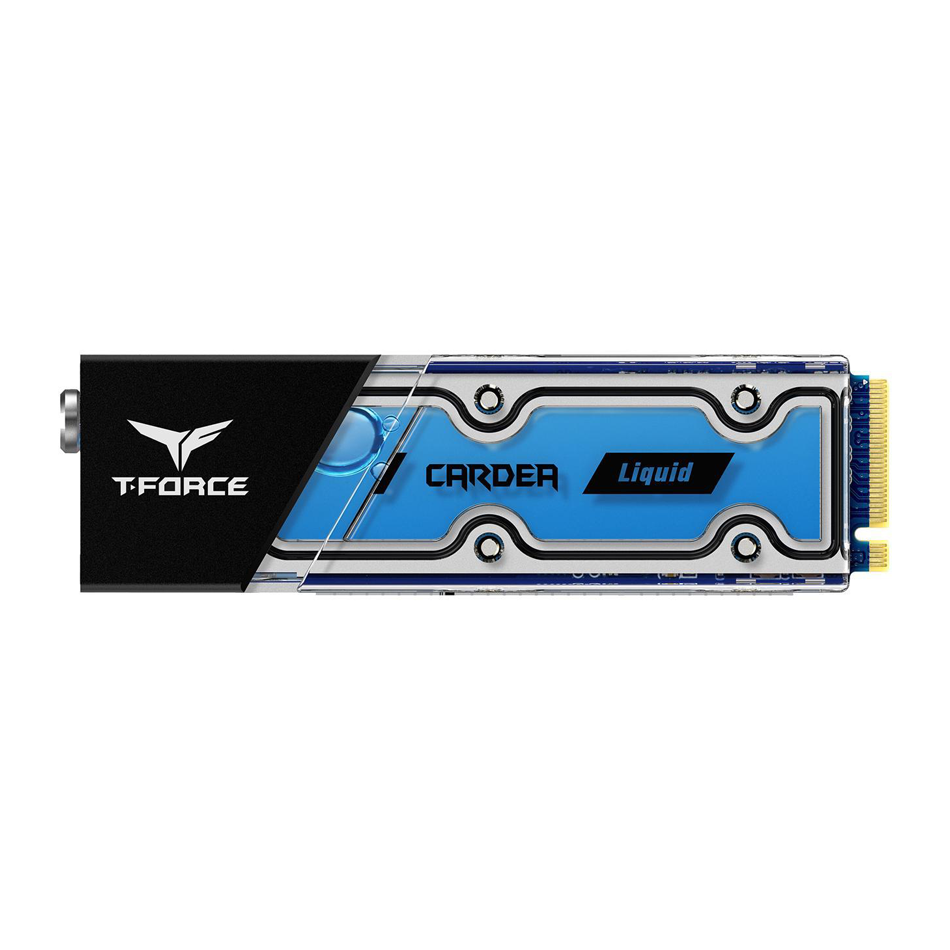

CARDEA Liquid M.2 PCIe SSD
Worlds first water cooling M.2 solid state drive
The water cooling M.2 SSD module has patented design of TEAMGROUP (Taiwan Utility Model Patent No. M574264). After the laboratorys rigorous testing and burn-in tests, by using the self-circulation cooling effect, this product is proven it can effectively lower the temperature down about 10 degrees[2] to avoid crashes due to overheating, and maintain a stable, high-speed performance. Gamers can enjoy the gaming experience at any time.
The only patented water cooling design in the world
The concept is to transfer the heat source of the M.2 solid state drive to the aluminum alloy heat sink through the silicone thermal conductive pad and using the water-cooling liquid to lower the temperature quickly. Then, to further lower the temperature, the heat of the water cooling M.2 SSD module can be transferred with convection produced by the computer case fans.
Crystal-clear structure the perfect combination of craftsmanship and fashion
The water-cooling module has a crystal-clear design with T-FORCE LOGOs metal trim and the sliding rail design. On the inside, it has high quality, environmentally friendly water-cooling liquid. In addition, considering that gamers will adjust and refill the water-cooling liquid[4] by themselves, there is a translucent scale on the left side of the product to allow gamers to accurately adjust the ratio between the liquid and the air. This ensures excellent cooling efficiency.
Superior performance
It supports the latest NVMe1.3 protocol. Intelligent SLC Caching and DRAM Cache Buffer are built-in. With superior performance, the sequential read/write speed is up to 3,400/3,000 MB/s[1], and random read/write speed is up to 180K/160K* IOPS. It offers the smoothest high-speed experience.
Smart management high reliability
It supports the S.M.A.R.T function and its built-in smart algorithm management mechanism has functions such as GC (garbage collection) and TRIM command. The powerful Wear-Leveling technology and ECC (Error Correction Code) function can ensure data security and transfer stability.
Specifications
Model | CARDEA Liquid | |||
Interface | PCIe 3.0 x4 with NVMe 1.3 | |||
Capacity | 256GB / 512GB / 1TB[6] | |||
Voltage | DC +3.3V | |||
Operation Temperature | 0C ~ 70C | |||
Storage Temperature | -40C ~ 85C | |||
Terabyte Written | 256GB / 380 TB 512GB / 800 TB 1TB / 1,665TB[7] | |||
Performance | Crystal Disk Mark: 256GB Read/Write: up to 3,000/1,000 MB/s 512GB Read/Write: up to 3,400/2,000 MB/s 1TB Read/Write: up to 3,400/3,000 MB/s[1] | IOPS: 256GB Read/Write: 200K/200K IOPS Max 512GB Read/Write: 350K/300K IOPS Max 1TB Read/Write: 450K/400K IOPS Max[1] | ||
Weight | 42g | |||
Dimensions | 83.9(L) x 24.3(W) x 14.1(H) mm | |||
Humidity | RH 90% under 40°C (operational) | |||
Vibration | 80Hz~2,000Hz/20G | |||
Shock | 1,500G/0.5ms | |||
MTBF | 2,000,000 hours | |||
Operating System | 1. System Requirements:
2. This product is recommended for use on desktop computers due to the installation water cooling module. |
