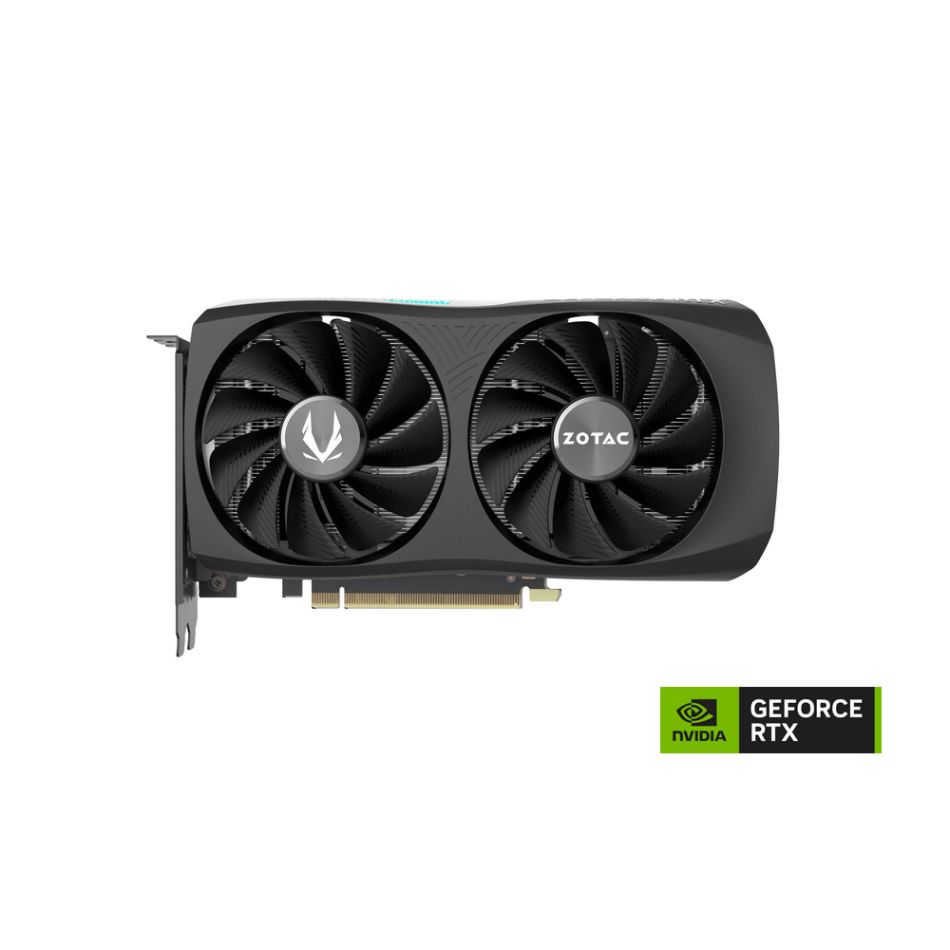

ZOTAC GAMING GEFORCE RTX 4060 TI TWIN EDGE 8GB GDDR6 Graphic Card - Black

ZOTAC GAMING GEFORCE RTX 4060Ti TWIN EDGE 8GB GDDR6 DLSS 3 Graphics Card - Black

The ZOTAC GAMING GeForce RTX 4060 Ti 8GB Twin Edge is a compact and powerful graphics card, featuring the NVIDIA Ada Lovelace architecture and an aerodynamic-inspired design. With a reduced 2.2 slot size, it's an excellent choice for those who want to build a SFF gaming PC capable of smooth framerate and performance in the latest title releases.

Ray Tracing

Hyperrealistic. Hyperfast.

The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.

NVIDIA DLSS 3

The performance multiplier, powered by AI.

DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.

GEFORCE RTX 4060 FAMILY

TWIN EDGE (OC)

The ZOTAC GAMING GeForce RTX 4060 Family Twin Edge and their OC variants have a purposefully designed compact footprint to enable powerful high-performance SFF PC builds.

WIDE CASE COMPATIBILITY

The compact design of the ZOTAC GAMING GeForce RTX 4060 family of GPUs make it easier for gamers looking to upgrade. With a slim 2.2-slot width and up to 8.9inch / 225.5mm short length, most PC cases available can easily accommodate with a simple drop-in installation.

STANDARD 8-PIN POWER

A single 8-pin PCIe power connector is all that’s needed to power this GPU. A lower 500W minimum recommended power supply (PSU) means that there are potentially less components needed for an upgrade, making it a more appealing upgrade choice.

COMPOSITE HEATPIPES

Made of composite layers consisting of a thicker envelope and a grooved wick with a multi-channel working fluid, each heat pipe is more efficient at transferring heat.

AIR FLOW

With ample ventilation paths, airflow can maneuver and exhaust from almost every side to minimize trapped heat.

NOISE REFINED

ZOTAC GAMING brings new noise-reducing features to the GeForce RTX 40 Series to enhance immersion when gaming.

Specifications

• GPU : GeForce RTX 4060 Ti
• CUDA cores : 4352
• Video Memory : 8GB GDDR6
• Memory Bus : 128-bit
• Engine Clock : Boost: 2535MHz
• Memory Clock : 18 Gbps
• PCI Express : 4.0 x8
• Display Outputs : 3 x DisplayPort 1.4a (up to 7680x4320@60Hz)

                                    1 x HDMI® Connector*

          *Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1a Specification

• HDCP Support : 2.3
• Multi Display Capability : Quad Display
• Recommended Power Supply : 500W
• Power Consumption : 160W
• Power Input : 1 x 8-pin PCIe
• DirectX : 12 Ultimate
• OpenGL : 4.6
• Cooling : IceStorm 2.0
• Slot Size : 2.2 slot
• SLI : N/A
• Supported OS : Windows 11 / 10 (64-bit, v1809 November 2018 or later)
• Card Length : 225.5mm x 123.2mm x 40.1mm / 8.9" x 4.9" x 1.6"
• Accessories : User Manual
