ASUS ROG CROSSHAIR X670E GENE

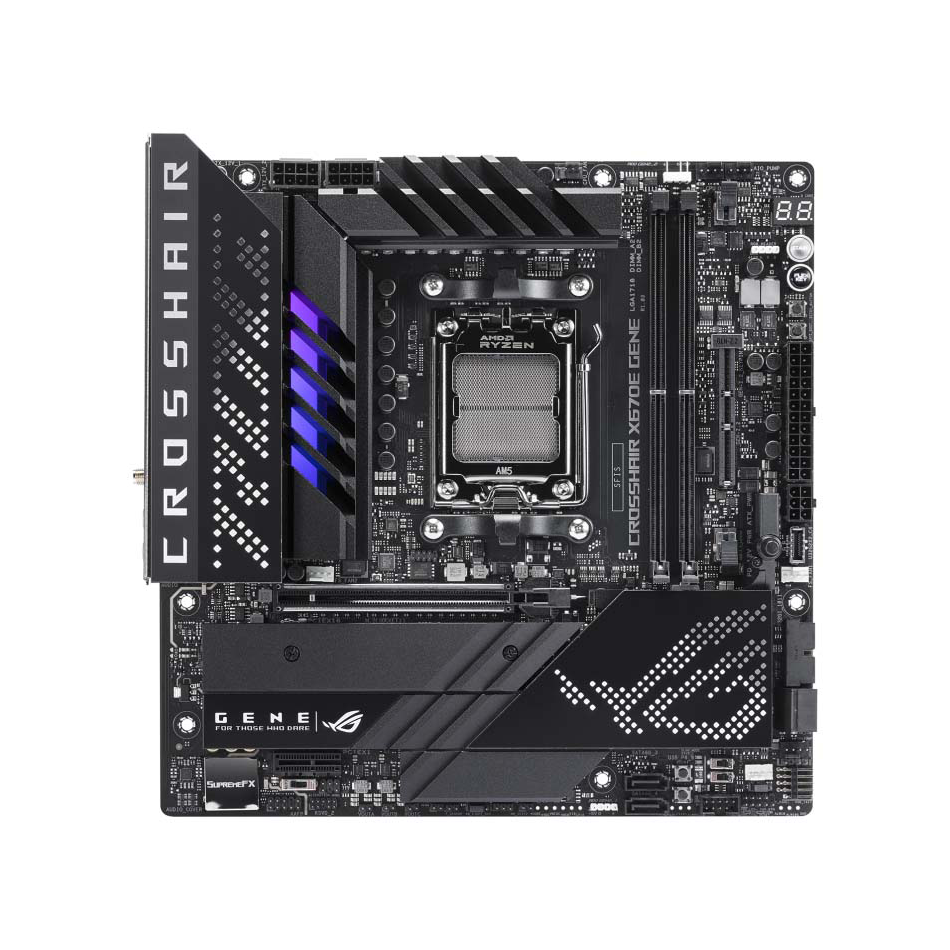

ASUS ROG CROSSHAIR X670E GENE AM5 micro-ATX Motherboard

ROG Crosshair X670E Gene

Formed by splicing the ROG DNA and mixing in an SFF enzyme, the ROG Crosshair X670E Gene is a mATX powerhouse that lets you have it all. With bulked-up power delivery and heatsinks, it dishes up a full-fat serving of AMD Ryzen 7000 Series processors, alongside a digestible blend of PCIe 5.0, DDR5, WiFi 6E, and USB4 for enthusiasts that want a compact AM5 build on the desktop.

PERFORMANCE

The ROG Crosshair X670E Gene features a sixteen-pack power solution specifically grown to handle the multi-threaded muscle of AMD Ryzen 7000 Series processors. Combined with a streamlined DDR5 layout, this nimble powerhouse dishes out hyperspeed performance. And ROG makes it as easy to access its natural edge through a suite of unique software and firmware technologies catering to beginners and veterans alike.

COOLING

Meeting Ryzen thermal demands head-on, the ROG Crosshair X670E Gene wields hefty VRM, chipset, and M.2 heatsinks to keep everything running at top performance. To aid in airflow, the Gene boasts copious fan header support a blessing for building in tight spaces. Once the rig is assembled, ROG tools make it easy to monitor and control fan speeds, and with the improved AI Cooling II utility, balancing system acoustics is better than ever.

CONNECTIVITY

Vast and fast. With PCIe 5.0 laced across the ROG Crosshair X670E Gene, loading and transfer times are nearly instantaneous. Plentiful USB lines the rear I/O, including two USB4® Type-C® ports capable of 40 GB/s speeds and 8K display output. Networking has a two-pronged attack with WiFi 6E and 2.5G LAN, and SupremeFX on-board audio keeps sound immersive and punchy.

OPTIMIZATION

A wealth of intuitive tools are at your fingertips so that you can optimize system performance quickly and efficiently while still having the flexibility to tinker to your heart's content.

PERSONALIZATION

The powerful core of the ROG Crosshair X670E Gene is graced by reflective plating across the board, contrasted by a dash of lighting that shines between grooves in the VRM heatsink. Sync the RGB glow with your other gear through Armoury Crate to bring out the unique personality of your build.

THIS CHANGES EVERYTHING.

FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE

Build your next rig with an AMD Ryzen 7000 Series processor and ROG Crosshair X670E Gene to experience advanced performance. With up to 16 Zen 4 cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen 7000 Series keeps you ahead of the game.1

You'll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO technology.

Specifications

CPU

• AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors*

Chipset

• AMD X670

Memory

• 2 x DIMM, Max. 64GB, DDR5 6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*

• Dual Channel Memory Architecture

• Supports AMD Extended Profiles for Overclocking (EXPO)

• OptiMem II

• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration.

• * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics

• 2 x USB4® ports support USB Type-C® display outputs*

• * VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

• AMD Ryzen 7000 Series Desktop Processors*

• 1 x PCIe 5.0 x16 slot

• AMD X670 Chipset

• 1 x PCIe 4.0 x1 slot

• * Please check PCIe bifurcation table in support

Storage

• Total supports 3 x M.2 slots and 4 x SATA

• 6Gb/s ports*

• AMD Ryzen 7000 Series Desktop Processors

• M.2 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)

• GEN-Z.2_1 slot (Key M) via GEN-Z.2, type

• 2242/2260/2280/22110 (supports PCIe 5.0 x4)**

• AMD X670 Chipset

• GEN-Z.2_2 slot (Key M) via GEN-Z.2, type

• 2242/2260/2280/22110 (supports PCIe 4.0 x4)

• 4 x SATA 6Gb/s ports

• *AMD RAIDXpert2 Technology supports both

• NVMe RAID 0/1/10 and SATA RAID 0/1/10.

• **Performance may vary depending on the

• SSD's firmware version and the system hardware & system configuration, for more information.

Ethernet

• 1 x Intel® 2.5Gb Ethernet

• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E

• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

• Supports 2.4/5/6GHz frequency band*

• Bluetooth v5.3**

• * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

• ** The Bluetooth version may vary, please

• refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 10 ports)

• 2 x USB4® ports with Intel® JHL8540 USB4®

• controller (2 x USB Type-C®)

• 6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C®)

• 2 x USB 2.0 ports (2 x Type-A)

• Front USB (Total 7 ports)

• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)*

• 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports

• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• *To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.

Audio

• ROG SupremeFX 7.1 Surround Sound High

• Definition Audio CODEC ALC4080

• - Impedance sense for front and rear headphone outputs

• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

• - Supports up to 32-Bit/384 kHz playback

• Audio Features

• - SupremeFX Shielding Technology

• - Savitech SV3H712 AMP

• - Gold-plated audio jacks

• - Rear optical S/PDIF out port

• - Premium audio capacitors

• - Audio cover

Back Panel I/O Ports

• 2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)

• 6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C®)

• 2 x USB 2.0 ports (2 x Type-A)

• 1 x Wi-Fi Module

• 1 x Intel® 2.5Gb Ethernet

• 5 x Gold-plated audio jacks*

• 1 x Optical S/PDIF out port

• 1 x BIOS FlashBack button

• 1 x Clear CMOS button

• 1 x PS/2 Keyboard/Mouse combo port

• *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors

• Fan and Cooling related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 1 x 4-pin AIO Pump header

• 1 x 4-pin Chassis Fan header

• 3 x 4-pin Full Speed Fan headers

• Power related

• 1 x 24-pin Main Power connector

• 2 x 8-pin +12V Power connector

• 1 x 6-pin PCIe Graphics Card connector

• Storage related

• 1 x M.2 slots (Key M)

• 1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

• USB

• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• Miscellaneous

• 1 x 80 Light Bar jumper

• 2 x Addressable Gen 2 headers

• 1 x Alteration Mode Switch

• 1 x Aura RGB header

• 2 x BCLK button

• 1 x FlexKey button

• 1 x 10-1 pin Front Panel Audio header (AAFP)

• 1 x LN2 Mode jumper

• 1 x Osc sence header

• 12 x ProbeIt Measurement Points

• 1 x ReTry button

• 1 x RSVD switch

• 1 x RSVD header

• 1 x Safe Boot button

• 1 x Slow Mode switch

• 1 x Start button

• 1 x 10-1 pin System Panel header

• 1 x Thermal Sensor header

Special Features

• Extreme OC Kit

• - FlexKey button

• - LN2 Mode

• - ProbeIt

• - ReTry button

• - Safe boot button

• - Start button

• - Slow Mode

• Extreme Engine Digi+

• - 10K Black Metallic Capacitors

• - MicroFine Alloy Choke

• ASUS Q-Design

• - M.2 Q-Latch

• - PCIe Slot Q-Release

• - Q-Code

• - Q-Connector

• - Q-DIMM

• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• - Q-Slot

• ASUS Thermal Solution

• - M.2 heatsink backplate

• - M.2 heatsink

• - VRM heatsink design

• ASUS EZ DIY

• - BIOS FlashBack button

• - Clear CMOS button

• - ProCool II

• - Pre-mounted I/O shield

• - SafeSlot

• - SafeDIMM

• Aura Sync

• - Aura RGB header

• - Addressable Gen 2 headers

• Front Panel USB 3.2 Gen 2x2 with Quick

• Charge 4+ Support

• - Support: up to 60W charging*

• - Output: 5/9/15/20V max. 3A, PPS:3.321V max. 3A

• - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS

• *To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W

Software Features

• ROG Exclusive Software

• - GameFirst VI

• - ROG CPU-Z

• - ROG True Voltician

• - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

• - Sonic Radar III

• - DTS® Sound Unbound

• - BullGuard Internet Security (1-year full version)

• ASUS Exclusive Software

• Armoury Crate

• - AIDA64 Extreme (1 year full version)

• - Aura Creator

• - Aura Sync

• - Fan Xpert 4 with AI Cooling II

• - Power Saving

• - Two-Way AI Noise Cancellation

• AI Suite 3

• - TPU

• - DIGI+ Power Control

• - Turbo app

• - PC Cleaner

• MyAsus

• WinRAR

• UEFI BIOS

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash 3

• - ASUS UEFI BIOS EZ Mode

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables

• 1 x RGB extension cable

• 2 x SATA 6Gb/s cables

• ROG GEN-Z.2 with Heatsink

• 1 x ROG GEN-Z.2 with heatsink

• 1 x M.2 pad for ROG GEN-Z.2

• 2 x M.2 screw package for ROG GEN-Z.2

• ROG True Voltician

• 1 x ROG True Voltician

• 4 x cables for ROG True Voltician

• Additional Cooling Kit

• 1 x Thermal pad for M.2

• Miscellaneous

• 1 x ASUS Wi-Fi moving antennas

• 1 x Q-connector

• 1 x M.2 Q-Latch package for M.2 backplate

• 1 x ROG Graphics card holder

• 1 x ROG key chain

• 1 x ROG stickers

• 1 x ROG thank you card

• 1 x Rubber Package for M.2 backplate

• Installation Media

• 1 x USB drive with utilities and drivers

• Documentation

• 1 x User guide

Operating System

• Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

• micro-ATX Form Factor

• 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
