ASUS MB ROG CROSSHAIR X670E HERO

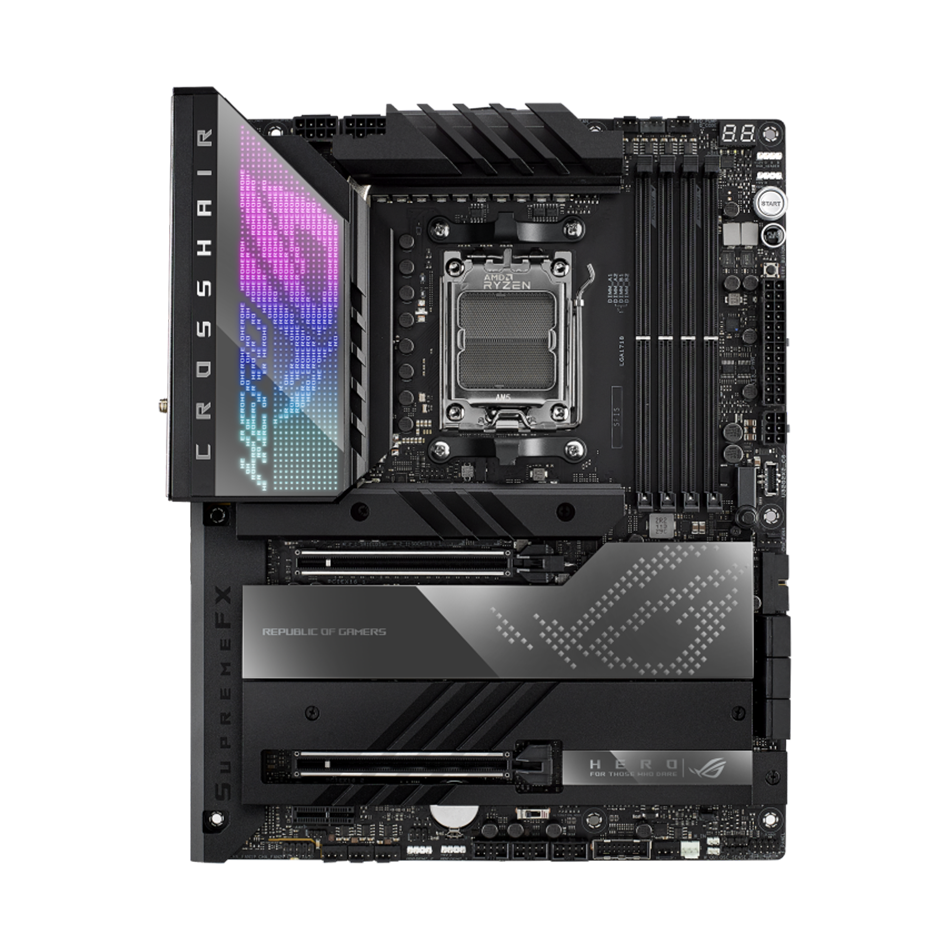

ASUS ROG CROSSHAIR X670E HERO AM5 ATX Motherboard

ROG Crosshair X670E Hero

Unyielding power delivery and robust thermal management form the indelible tenets of its creed. Hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support, and Polymo lighting add potent layers of build personalization on top. And the finishing touches are added by exclusive utilities and overclocking controls that allow you to uniquely flex the performance of Ryzen 7000 Series processors. Define your AM5 build with the ROG Crosshair X670E Hero.

PERFORMANCE

The grueling demands of the mightiest AMD Ryzen 7000 Series processors are no match for the eighteen 110A-stage power solution of the ROG Crosshair X670E Hero. Its massive headroom opens up incredible overclocking potential, bolstered by a combo attack of unique ROG technologies and champion-level DDR5 speeds.

COOLING

Every layer of the Hero's armor is painstakingly forged to keep it cool under stress. Enormous heatsinks have been strategically hewn to offer massive thermal headroom to the VRM, while both chipsets share a large central plate for widespread dissipation. Filling in the gaps, the M.2 slots have vast heat spreaders to let installed drives plow through intense PCIe 5.0 transfers without breaking a sweat.

CONNECTIVITY

The dual-chipset design of the ROG Crosshair X670E Hero brings a wealth of bandwidth for connected devices so that you can have it all. WiFi 6E, 2.5G LAN, and dual USB4 ports all grace the rear I/O, flanked by plenty of additional ports for all your devices. On-board SupremeFX audio delivers premium, immersive sound, now using an improved ESS quad-DAC amplifier. And under the hood, up to five PCIe M.2 drives can be loaded up for blazing fast load times and transfer speeds.

OPTIMIZATION

The ROG Crosshair X670E Hero provides a myriad of intuitive and flexible tools to optimize every aspect of your system.

PERSONALIZATION

Illuminating the I/O shroud of the ROG Crosshair X670E Hero is a colorful microstructural array called Polymo Lighting. Two stylish patterns are available for builders to tinker with in Armoury Crate and sync up with the rest of their system for a brilliant display of individuality.

THIS CHANGES EVERYTHING.

FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE

Build your next rig with an AMD Ryzen 7000 Series processor and ROG Crosshair X670E Hero to experience advanced performance. With up to 16 Zen 4 cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen 7000 Series keeps you ahead of the game.

You'll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO technology.

Specifications

CPU

• AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors*

Chipset

• AMD X670

Memory

• 4 x DIMM, Max. 128GB, DDR5
• 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD® Extended Profiles for Overclocking (EXPO)
• OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration.

* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics

• 1 x HDMI® port*
• 2 x USB4® ports support USB Type-C display outputs**

*Supports 4K@60Hz as specified in HDMI 2.1.

**VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

• AMD Ryzen 7000 Series Desktop Processors
• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)*
• AMD X670 Chipset
• 1 x PCIe 4.0 x1 slots

* When the PCIe 5.0 M.2 card is installed on the PCIEX16_2 slot, PCIEX16_1 will run x8 only.

Storage

• Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
• AMD Ryzen 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
• AMD X670 Chipset
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
• 6 x SATA 6Gb/s ports

*AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

**Performances may vary depending on the SSD's firmware version and the system hardware & system configuration, for more information refer to www.asus.com for device support list.

Ethernet

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.3**
• * WiFi 6E 6GHz regulatory may vary between countries, and function will be
• ready in Windows 11 or later.

** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 12 ports)
• 2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
• 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
• 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)
• Front USB (Total 11 ports)
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)*
• 2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports

*To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.

Audio

• ROG SupremeFX 7.1 Surround Sound High
• Definition Audio CODEC ALC4082
• - Impedance sense for front and rear
• headphone outputs
• - Supports: Jack-detection,
• Multi-streaming, Front Panel Jack-retasking
• - High quality 120 dB SNR stereo playback
• output and 113 dB SNR recording input
• - Supports up to 32-Bit/384 kHz playback"
• Audio Features
• - SupremeFX Shielding Technology
• - ESS® ES9218 QUAD DAC
• - Gold-plated audio jacks
• - Rear optical S/PDIF out port
• - Premium audio capacitors
• - Audio cover

Back Panel I/O Ports

• 2 x USB4® ports with Intel® JHL8540 USB4®
• controller (2 x USB Type-C®)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 9 x USB 3.2 Gen 2 ports(8 x Type-A + 1 x Type-C®)
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet
• 5 x Gold-plated audio jacks*
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack  button
• 1 x Clear CMOS button

*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header
• 1 x 2-pin Water In header
• 1 x 2-pin Water Out header
• 1 x 3-pin Water Flow header
• Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connector
• 1 x 6-pinPCIe Power connector
• Storage related
• 4 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Alteration Mode Switch
• 1 x Aura RGB header
• 1 x FlexKey button
• 1 x Front Panel Audio header (AAFP)
• 1 x ReTry button
• 1 x Start button
• 1 x 10-1 pin System Panel header
• 1 x Thermal Sensor header

Special Features

• Extreme OC Kit
• - FlexKey button
• - ReTry button
• - Start button
• Extreme Engine Digi+
• - 10K Black Metallic Capacitors
• - MicroFine Alloy Choke
• ASUS Q-Design
• - M.2 Q-Latch
• - PCIe Slot Q-Release
• - Q-Code
• - Q-Connector
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink backplate
• - M.2 heatsink
• - VRM heatsink design
• ASUS EZ DIY
• - BIOS FlashBack button
• - Clear CMOS button
• - ProCool II
• - Pre-mounted I/O shield
• - SafeSlot
• - SafeDIMM
• Aura Sync
• - Aura RGB header
• - Addressable Gen 2 headers
• Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
• - Support: up to 60W charging*
• - Output: 5/9/15/20V max. 3A, PPS:3.321V max. 3A
• - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS

* To support 60W, please install the power cable to 6-pin PCIe power connector or can only support 27W

Software Features

• ROG Exclusive Software
• - GameFirst VI
• - ROG CPU-Z
• - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
• - Sonic Radar III
• - DTS® Sound Unbound
• - BullGuard Internet Security (1-year full version)
• ASUS Exclusive Software
• Armoury Crate
• - AIDA64 Extreme (1 year full version)
• - Aura Creator
• - Aura Sync
• - Fan Xpert 4 with AI Cooling II
• - Power Saving
• - Polymo Lighting
• - Two-Way AI Noise Cancellation
• AI Suite 3
• TPU
• DIGI+ Power Control
• Turbo app
• PC Cleaner
• MyAsus
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 256Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables
• 1 x ARGB RGB extension cable
• 1 x RGB extension cable
• 4 x SATA 6Gb/s cables
• PCIe 5.0 M.2 Card with Heatsink
• 1 x PCIe 5.0 M.2 Card with heatsink
• 1 x M.2 screw package for PCIe 5.0 M.2 Card
• Additional Cooling Kit
• 1 x Thermal pad for M.2
• Miscellaneous
• 1 x ASUS Wi-Fi moving antennas
• 3 x Rubber Packages for M.2 backplate
• 1 x Q-connector
• 1 x M.2 Q-Latch package
• 3 x M.2 Q-Latch packages for M.2 backplate
• 1 x ROG Graphics card holder
• 1 x ROG key chain
• 1 x ROG stickers
• 1 x ROG thank you card
• Installation Media
• 1 x USB drive with utilities and drivers
• Documentation
• 1 x User guide

Operating System

• Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
