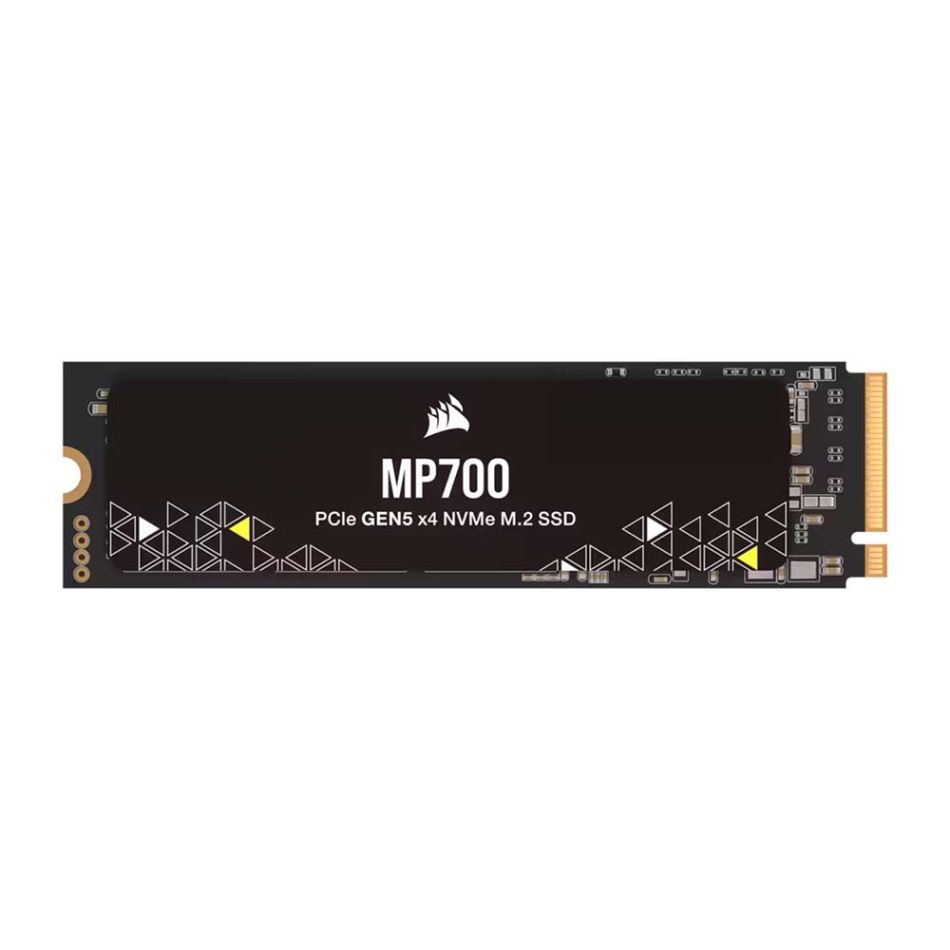

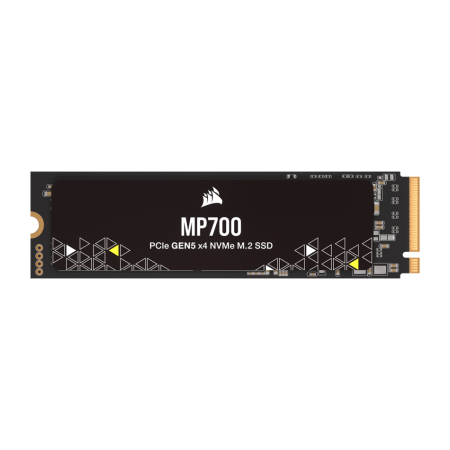

CORSAIR MP700 1TB PCIe 5.0 (Gen 5) x4 NVMe M.2 SSD
Brand
Corsair
- 1TB Capacity
- PCIe NVMe Gen 5 Interface
- M.2 2280 Form Factor
- Up to 9500MB/s Read | 8500MB/s Write Speeds
Categories:
Corsair MP700 PCIe Gen 5 x 4 NVMe M.2 SSD - 1TB
Harness the power of Gen5 SSD technology with NVMe 2.0 to enable faster read and write times, built with high-density 3D TLC NAND flash memory.
MP700
GEN5 PCIe x4 M.2 NVMe SSD
BLAZING FAST GEN5 SPEEDS
XTREME GEN5 STORAGE PERFORMANCE
PCIe Gen5 x4 combines with the massively high-bandwidth NVMe 2.0 interface to unleash higher-speed data transfers and greater M.2 SSD performance than ever before.
Up to 9,500MB/sec Sequential Read
Up to 8,500MB/sec Sequential Write
*SSD cooling required. Check your motherboard for details.
HIGH-DENSITY 3D TLC NAND
Combines high-speed performance with outstanding endurance, ensuring your drive will last and perform well through many years of use.
Compact M.2 2280 Form-Factor
Fits directly onto most motherboards.*
*Select Intel Z690 and Z790 and AMD 600 Series motherboards; lower performance on PCIe Gen4 M.2 motherboards.
Microsoft DirectStorage**
Enables the MP700 to communicate directly with your graphics card when playing compatible games, for unbelievably fast load times.
**DirectStorage requires a DirectX12 GPU with Shader Model 6.0 support
Specifications
- Form Factor : M.2 2280
- SSD Package Contents : MP700 M.2 SSD
- Memory Type : PCIe Gen 5.0 x4
- NAND Technology : 3D TLC
- SSD Max Sequential Read CDM : Up to 9,500MB/s
- SSD Max Sequential Write CDM : up to 8,500MB/s
- Storage Temperature : -40°C to +85°C
- Endurance : 700TBW
- Max Random Read QD32 IOMeter : Up to 1.3M IOPS
- Power Consumption Active : 10.0W Average
- SSD Smart Support : Yes
- SSD Operating Temperature : 0°C to +70°C
- Storage Humidity : 93% RH (40° C)
- SSD Shock : 1,500 G
- Application Consumer : Client
- Voltage : 3.3V, +/- 5%
- Vibration : 20 Hz~80 Hz/1.52 mm, 80 Hz~2000 Hz/20G
- DEVSLP : PS4: <900mW
- Encryption : AES 256-bit Encryption
- MTBF Hours : 1,600,000 Hours
- SSD TBW : 700
- Max Random Write QD32 IOMeter : Up to 1.6M IOPS
- SSD Compatibility : M.2 2280 Interface Connector Windows 10, 11, Mac OS X
- Weight : 0.047
