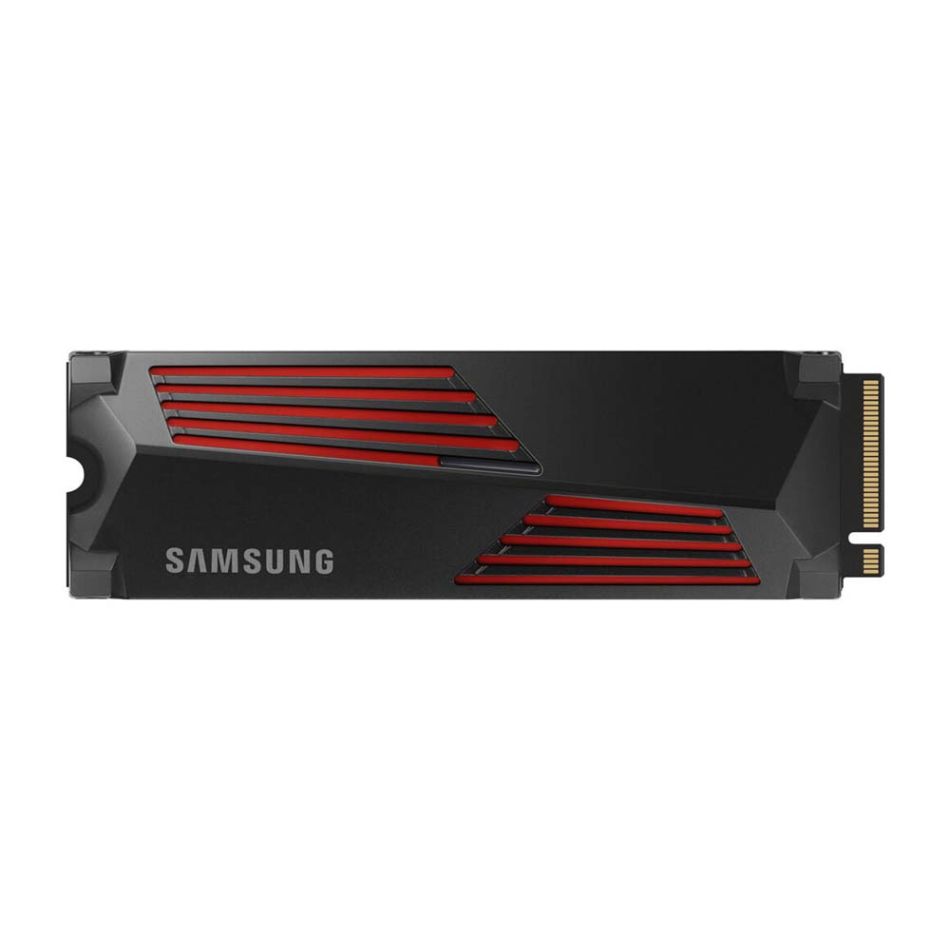

SAMSUNG 990 PRO Heatsink PCIe 4.0 NVMe SSD - 2TB

SAMSUNG 990 PRO NVMe M.2 SSD - 2TB With Heatsink

Our Ultimate SSD

Reach max performance with PCIe®4.0.Experience longer-lasting, opponent-blasting speed.The in-house controller's smart heat control delivers supreme power efficiency while maintaining ferocious performance that always keeps you at the top of your game.

* PCIe 4.0’s best theoretical sequential read is 8000 MB/s - 990 PRO reaches 7450 MB/s as of Q3, 2022.

Maximized PCIe®4.0 speed

Huge speed boost

Get random read/write speeds that are 40%/55% faster than 980 PRO. Experience up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near the max performance of PCIe®4.0. Fly high in gaming, video editing, 3D modeling, data analysis and more.

Breakthrough power efficiency

More power-efficient performance

Use less power and get more performance. Enjoy up to 50% improved performance per watt over 980 PRO, plus optimal power efficiency with max PCIe®4.0 performance.

* 980 PRO Sequential Read/Write - 1,129/877 MB/Watt, 990 PRO Sequential Read/Write - 1380/1319 MB/Watt based on internal test result of 1TB capacity model.

Smart thermal control

Samsung's own nickel-coated high-end controller delivers effective thermal control and prevents sudden performance drops from overheating. Play confidently with stable thermal power and minimal fan noise even during heavy-graphic gaming. With its slim size, 990 PRO with Heatsink is a perfect fit for PlayStation®5, desktops and laptops that meet the PCI-SIG®D8 standard.

* PCI-SIG®D8 standard spec: 8.8mm

The champion maker

A more than 55% improvement in random performance enables faster loads for an ultimate gaming experience on PS5 and DirectStorage PC games. With RGB LED lights, Heatsink’s futuristic design adds style to function..

*DirectStorage technology from Microsoft loads games faster than before by leveraging the multiple GB/sec speed of modern NVMe SSDs.

* Results are based on a comparison with Samsung 980 PRO

Samsung Magician Software

Unlock the full potential of 990 PRO.

Get the most out of your SSD with Samsung Magician's advanced yet intuitive optimization tools. Monitor drive health, protect valuable data, receive important updates and set up LED color combinations for your 990 PRO with Heatsink. It's your personal SSD toolkit.

World's No. 1 Flash Memory Brand

Experience the performance and reliability that you can only get from the world's number one brand  for flash memory since 2003. All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.

* Source: 2003-Q3.2022 OMDIA data: NAND suppliers' revenue market share.

Specifications

General Feature

• Application : Client PCs, Game Consoles
• Capacity : 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
• Interface : PCIe Gen 4.0 x4, NVMe 2.0
• Dimension (WxHxD) : 80 x 24.3 x 8.2 mm (with heatsink)
• Weight : Max 28.0g Weight
• Form Factor : M.2 (2280)
• Storage Memory : Samsung V-NAND 3-bit MLC
• Controller : Samsung in-house Controller
• Cache Memory : Samsung 2GB Low Power DDR4 SDRAM

Performance

• Sequential Read : Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
• Sequential write : Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
• Random Read (4KB ,QD32) : Up to 1,400,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4KB ,QD32) : Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration
• Random Read (4KB ,QD1) : Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4KB ,QD1) : Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

Type

• Product Type : 990 PRO with Heatsink

Key Features

• Cache Memory : Samsung 2GB Low Power DDR4 SDRAM
• NVMe : Yes

General

• Average Power Consumption (system level)

        *Average: 5.5 W*Maximum: 8.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

• Power consumption (Idle) : Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration

Environmental Specs

• Operating Temperature : 0 - 70 ℃ Operating Temperature
• Shock : 1,500 G & 0.5 ms (Half sine)

Software

• Management SW : Magician Software for SSD management


Special Feature

• TRIM Support : Supported
• S.M.A.R.T Support : Supported
• GC (Garbage Collection) : Auto Garbage Collection Algorithm
• Encryption Support : AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
• WWN Support : Not supported
• Device Sleep Mode Support : Yes

Environment

• Average Power Consumption (system level)

        *Average: 5.5 W*Maximum: 8.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

• Power consumption (Idle) : Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration
• Allowable Voltage : 3.3 V ± 5 % Allowable voltage
• Reliability (MTBF) : 1.5 Million Hours Reliability (MTBF)

Accessories

• Installation Kit : Not Available
