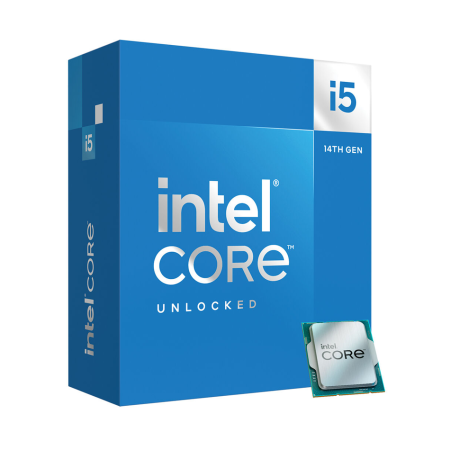

INTEL CORE i5 14400F 20M Cache up to 4.70 GHz Processor
Brand
Acer![Acer Acer](http://q8quadra.com/media/magiccart/shopbrand/brand/a/c/acer.png)
- 10 Cores & 16 Threads
- 2.5 GHz Base P-Core Clock Speed
- 5 GHz Maximum Turbo Boost Frequency
- LGA 1700 Socket
- 20MB Cache Memory
- Dual-Channel DDR5-4800 Memory
- Hybrid Core Architecture
- Includes Laminar RM1 Cooler
- 14th Generation (Raptor Lake-S Refresh)
Categories:
INTEL CORE i5-14400F 10-Core LGA 1700 14th Gen Processor
Power up your productivity, gaming, and content creation with the Intel Core i5-14400F 2.5 GHz 10-Core LGA 1700 Processor. Built with the Intel 7 process, this 14th generation desktop processor delivers improved power efficiency while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i5-14400F powers applications and games with six 2.5 GHz Performance-cores while the four low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.
With 20MB of cache and a 5 GHz Turbo Boost frequency, this processor is made to handle a variety of workloads. The Core i5-14400F also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 memory at 4800 MHz.
The Core i5-14400F does not include integrated graphics, meaning that users will need to purchase a separate dedicated graphics card. A Laminar RM1 cooler is included.
Hybrid Core Design
Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor's Efficient-cores.
Intel Thread Director
The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 16 threads are assigned to the right core at the right time.
PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.
Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.
Specifications
Essentials
- Product Collection : Intel® Core™ i5 Processors (14th gen)
- Code Name : Products formerly Raptor Lake
- Vertical Segment : Desktop
- Processor Number : i5-14400F
- Lithography : Intel 7
- Use Conditions : PC/Client/Tablet
CPU Specifications
- Total Cores : 10
- # of Performance-cores : 6
- # of Efficient-cores : 4
- Total Threads : 16
- Max Turbo Frequency : 4.7 GHz
- Performance-core Max Turbo Frequency : 4.7 GHz
- Efficient-core Max Turbo Frequency : 3.5 GHz
- Performance-core Base Frequency : 2.5 GHz
- Efficient-core Base Frequency : 1.8 GHz
- Cache : 20 MB Intel® Smart Cache
- Total L2 Cache : 9.5 MB
- Processor Base Power : 65 W
- Maximum Turbo Power : 148 W
Supplemental Information
- Embedded Options Available : No
Memory Specifications
- Max Memory Size (dependent on memory type) : 192 GB
- Memory Types : Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
- Max # of Memory Channels : 2
- Max Memory Bandwidth : 76.8 GB/s
Expansion Options
- Direct Media Interface (DMI) Revision : 4.0
- Max # of DMI Lanes : 8
- Scalability : 1S Only
- PCI Express Revision : 5.0 and 4.0
- PCI Express Configurations : Up to 1x16+4, 2x8+4
- Max # of PCI Express Lanes : 20
Package Specifications
- Sockets Supported : FCLGA1700
- Max CPU Configuration : 1
- Thermal Solution Specification PCG 2020C
- TJUNCTION : 100°C
- Package Size : 45.0 mm x 37.5 mm
Advanced Technologies
- Intel® Gaussian & Neural Accelerator : 3.0
- Intel® Thread Director : Yes
- Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
- Intel® Speed Shift Technology : Yes
- Intel® Turbo Boost Technology : 2.0
- Intel® Hyper-Threading Technology : Yes
- Intel® 64 : Yes
- Instruction Set : 64-bit
- Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
- Idle States : Yes
- Enhanced Intel SpeedStep® Technology : Yes
- Thermal Monitoring Technologies : Yes
- Intel® Volume Management Device (VMD) : Yes
Security & Reliability
- Intel® Standard Manageability (ISM) : Yes
- Intel® Control-Flow Enforcement Technology : Yes
- Intel® AES New Instructions : Yes
- Secure Key : Yes
- Intel® OS Guard : Yes
- Execute Disable Bit : Yes
- Intel® Boot Guard : Yes
- Mode-based Execute Control (MBEC) : Yes
- Intel® Virtualization Technology (VT-x) : Yes
- Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
- Intel® VT-x with Extended Page Tables (EPT) : Yes
