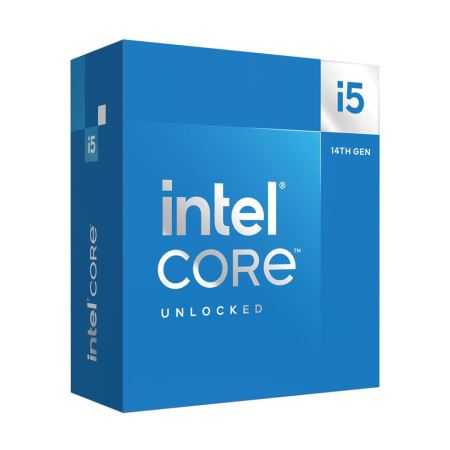

INTEL CORE i5 14500 24M Cache up to 5.00 GHz Processor

INTEL CORE i5-14500 14-Core LGA 1700 14th Gen Processor

Power up your productivity, gaming, and content creation with the Intel Core i5-14500 2.6 GHz 14-Core LGA 1700 Processor. Built with the Intel 7 process, this 14th generation desktop processor delivers improved power efficiency while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i5-14500 powers applications and games with six 2.6 GHz Performance-cores while the eight low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.

With 24MB of cache and a 5 GHz Turbo Boost frequency, this processor is made to handle a variety of workloads. The Core i5-14500 also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 ECC memory at 4800 MHz.

The Core i5-14500 features integrated Intel UHD 770 Graphics. A Laminar RM1 cooler is included.

Hybrid Core Design

Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor's Efficient-cores.

Intel Thread Director

The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 20 threads are assigned to the right core at the right time.

PCIe 4.0 & 5.0

This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.

Integrated Graphics

Driven by Intel Xe architecture, the integrated Intel UHD 770 Graphics delivers fast, rich 3D performance for high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays with high-dynamic range.

Gaussian & Neural Accelerator 3.0

Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Intel Deep Learning Boost

Accelerates AI inference to improve performance for deep learning workloads.

Specifications

Essentials

• Product Collection : Intel® Core™ i5 Processors (14th gen)
• Code Name  : Products formerly Raptor Lake
• Vertical Segment  : Desktop
• Processor Number  : i5-14500
• Lithography : Intel 7
• Use Conditions : PC/Client/Tablet, Workstation

CPU Specifications

• Total Cores : 14
• # of Performance-cores : 6
• # of Efficient-cores : 8
• Total Threads : 20
• Max Turbo Frequency : 5 GHz
• Performance-core Max Turbo Frequency : 5 GHz
• Efficient-core Max Turbo Frequency : 3.7 GHz
• Performance-core Base Frequency : 2.6 GHz
• Efficient-core Base Frequency : 1.9 GHz
• Cache : 24 MB Intel® Smart Cache
• Total L2 Cache  : 11.5 MB
• Processor Base Power : 65 W
• Maximum Turbo Power : 154 W

Supplemental Information

• Embedded Options Available : Yes

Memory Specifications

• Max Memory Size (dependent on memory type) : 192 GB
• Memory Types : Up to DDR5 4800 MT/s

                                            Up to DDR4 3200 MT/s

• Max # of Memory Channels : 2
• Max Memory Bandwidth : 76.8 GB/s
• ECC Memory Supported : Yes

GPU Specifications

• GPU Name :  Intel® UHD Graphics 770
• Graphics Max Dynamic Frequency  : 1.55 GHz
• Graphics Output eDP : 1.4b, DP 1.4a, HDMI 2.1
• Execution Units : 32
• Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
• Max Resolution (DP): 7680 x 4320 @ 60Hz
• Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
• DirectX* Support : 12
• OpenGL* Support : 4.5
• OpenCL* Support : 3.0
• Multi-Format Codec Engines : 2
• Intel® Quick Sync Video : Yes
• Intel® Clear Video HD Technology : Yes
• # of Displays Supported : 4
• Device ID :  0x4680

Expansion Options

• Direct Media Interface (DMI) Revision  : 4.0
• Max # of DMI Lanes : 8
• Scalability : 1S Only
• PCI Express Revision : 5.0 and 4.0
• PCI Express Configurations : Up to 1x16+4, 2x8+4
• Max of PCI Express Lanes  : 20

Package Specifications

• Sockets Supported : FCLGA1700
• Max CPU Configuration  : 1
• Thermal Solution Specification PCG  : 2020C
• TJUNCTION  : 100°C
• Package Size  : 45.0 mm x 37.5 mm

Advanced Technologies

• Intel® Gaussian & Neural Accelerator : 3.0
• Intel® Thread Director : Yes
• Intel® Deep Learning Boost (Intel® DL Boost) on CPU  : Yes
• Intel® Speed Shift Technology : Yes
• Intel® Turbo Boost Technology : 2.0
• Intel® Hyper-Threading Technology : Yes
• Intel® 64 : Yes
• Instruction Set  : 64-bit
• Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States : Yes
• Enhanced Intel SpeedStep® Technology : Yes
• Thermal Monitoring Technologies : Yes
• Intel® Volume Management Device (VMD) : Yes

Security & Reliability

• Intel vPro® Eligibility : Intel vPro® Enterprise, Intel vPro® Essentials, Intel vPro® Platform
• Intel® Threat Detection Technology (TDT) : Yes
• Intel® Active Management Technology (AMT) : Yes
• Intel® Standard Manageability (ISM) : Yes
• Intel® Remote Platform Erase (RPE) : Yes
• Intel® One-Click Recovery : Yes
• Intel® Hardware Shield Eligibility : Yes
• Intel® Control-Flow Enforcement Technology : Yes
• Intel® Total Memory Encryption - Multi Key : Yes
• Intel® AES New Instructions : Yes
• Secure Key : Yes
• Intel® OS Guard : Yes
• Intel® Trusted Execution Technology : Yes
• Execute Disable Bit : Yes
• Intel® Boot Guard : Yes
• Mode-based Execute Control (MBEC) :Yes
• Intel® Stable IT Platform Program (SIPP)  : Yes
• Intel® Virtualization Technology with Redirect Protection (VT-rp) : Yes
• Intel® Virtualization Technology (VT-x) : Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
• Intel® VT-x with Extended Page Tables (EPT) : Yes
