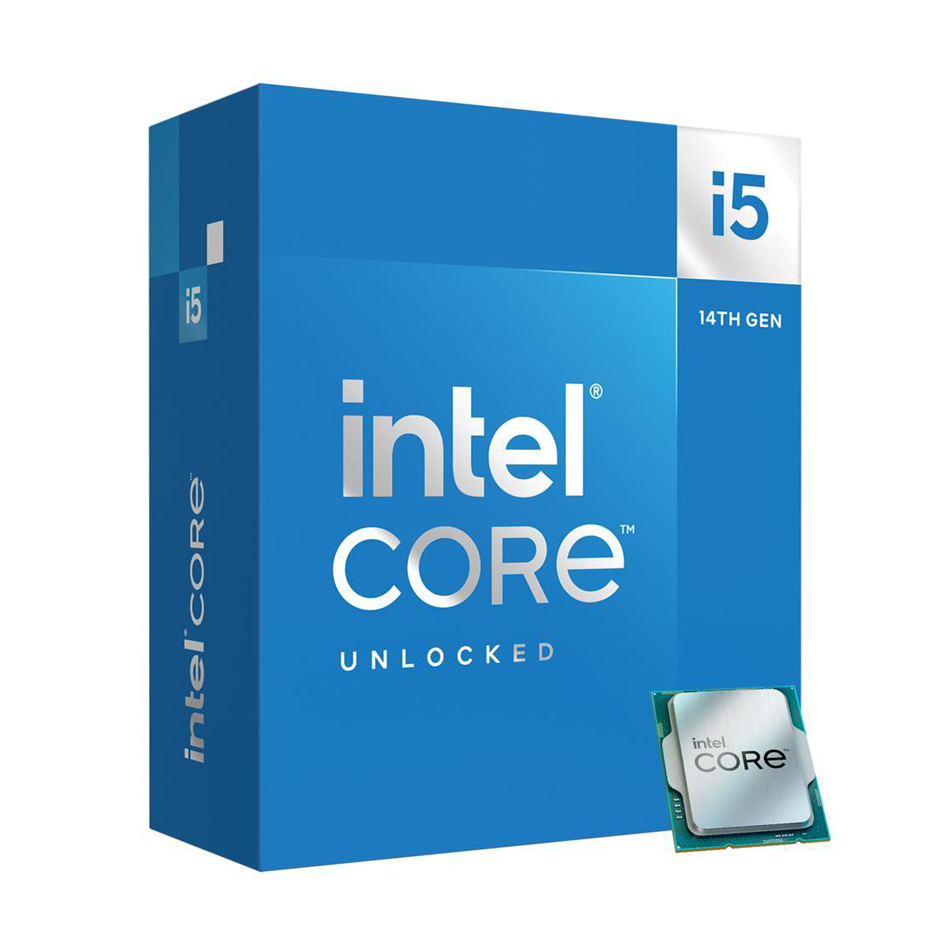

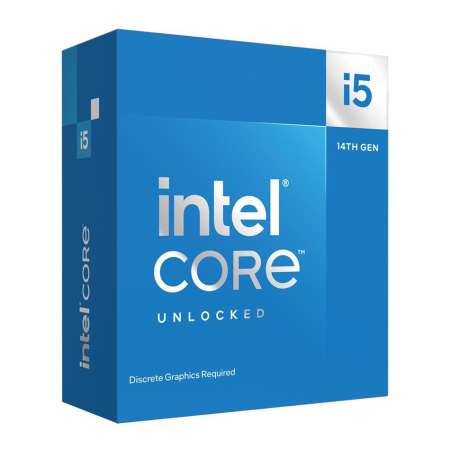

Intel Core i5 14600K 24M Cache, up to 5.30 GHz Processor

INTEL CORE i5-14600K 14-Core LGA 1700 14th Gen Processor

Power up your productivity, gaming, and content creation with the Intel Core i5-14600K 14-Core LGA 1700 Processor. Built with the Intel 7 process, this 14th generation desktop processor delivers improved power efficiency while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i5-14600K powers applications and games with six 3.5 GHz Performance-cores while the eight low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.

With 24MB of cache and a 5.3 GHz Turbo Boost frequency, this processor is made to handle a variety of workloads. You can overclock this processor for even greater performance. The Core i5-14600K also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 ECC memory at 5600 MHz.

The Core i5-14600K features integrated Intel UHD 770 Graphics. Please note that a thermal solution is NOT included.

Hybrid Core Design

Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor's Efficient-cores.

Intel Thread Director

The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 20 threads are assigned to the right core at the right time.

PCIe 4.0 & 5.0

This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.

Integrated Graphics

Driven by Intel Xe architecture, the integrated Intel UHD 770 Graphics delivers fast, rich 3D performance for high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays with high-dynamic range.

Gaussian & Neural Accelerator 3.0

Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Intel Deep Learning Boost

Accelerates AI inference to improve performance for deep learning workloads.

Specifications

Essentials

• Product Collection : Intel® Core™ i5 Processors (14th gen)
• Code Name : Products formerly RAPTOR LAKE
• Vertical Segment : Desktop
• Processor Number : i5-14600K
• Lithography  : Intel 7

CPU Specifications

• Total Cores : 14
• # of Performance-cores : 6
• # of Efficient-cores : 8
• Total Threads : 20
• Max Turbo Frequency : 5.3 GHz
• Performance-core Max Turbo Frequency : 5.3 GHz
• Efficient-core Max Turbo Frequency : 4 GHz
• Performance-core Base Frequency : 3.5 GHz
• Efficient-core Base Frequency : 2.6 GHz
• Cache : 24 MB Intel® Smart Cache
• Total L2 Cache :  20 MB
• Processor Base Power : 125 W
• Maximum Turbo Power : 181 W

Supplemental Information

• Embedded Options Available :  No

Memory Specifications

• Max Memory Size (dependent on memory type) : 192 GB
• Memory Types : Up to DDR5 5600 MT/s

                                           Up to DDR4 3200 MT/s

• Max # of Memory Channels : 2
• Max Memory Bandwidth : 89.6 GB/s
• ECC Memory Supported : Yes

GPU Specifications

• Processor Graphics : Intel® UHD Graphics 770
• Graphics Base Frequency : 300 MHz
• Graphics Max Dynamic Frequency : 1.55 GHz
• Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
• Execution Units 32
• Max Resolution (HDMI) :  4096 x 2160 @ 60Hz
• Max Resolution (DP) :  7680 x 4320 @ 60Hz
• Max Resolution (eDP - Integrated Flat Panel) :  5120 x 3200 @ 120Hz
• DirectX* Support : 12
• OpenGL* Support : 4.5
• OpenCL* Support : 3.0
• Multi-Format Codec Engines : 2
• Intel® Quick Sync Video : Yes
• Intel® Clear Video HD Technology : Yes
• # of Displays Supported : 4
• Device ID : 0xA780

Expansion Options

• Direct Media Interface (DMI) Revision : 4.0
• Max # of DMI Lanes : 8
• Scalability : 1S Only
• PCI Express Revision : 5.0 and 4.0
• PCI Express Configurations : Up to 1x16+4, 2x8+4
• Max # of PCI Express Lanes 20

Package Specifications

• Sockets Supported : FCLGA1700
• Max CPU Configuration : 1
• Thermal Solution Specification : PCG 2020A
• TJUNCTION : 100°C
• Package Size : 45.0 mm x 37.5 mm

Advanced Technologies

• Intel® Gaussian & Neural Accelerator : 3.0
• Intel® Thread Director : Yes
• Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
• Intel® Speed Shift Technology : Yes
• Intel® Turbo Boost Technology : 2.0
• Intel® Hyper-Threading Technology : Yes
• Intel® 64 : Yes
• Instruction Set : 64-bit
• Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States : Yes
• Enhanced Intel SpeedStep® Technology : Yes
• Thermal Monitoring Technologies : Yes
• Intel® Volume Management Device (VMD) : Yes

Security & Reliability

• Intel® Standard Manageability (ISM) : Yes
• Intel® Control-Flow Enforcement Technology :Yes
• Intel® AES New Instructions : Yes
• Secure Key : Yes
• Intel® OS Guard : Yes
• Execute Disable Bit : Yes
• Intel® Boot Guard : Yes
• Mode-based Execute Control (MBEC) : Yes
• Intel® Virtualization Technology (VT-x) : Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
• Intel® VT-x with Extended Page Tables (EPT) : Yes
