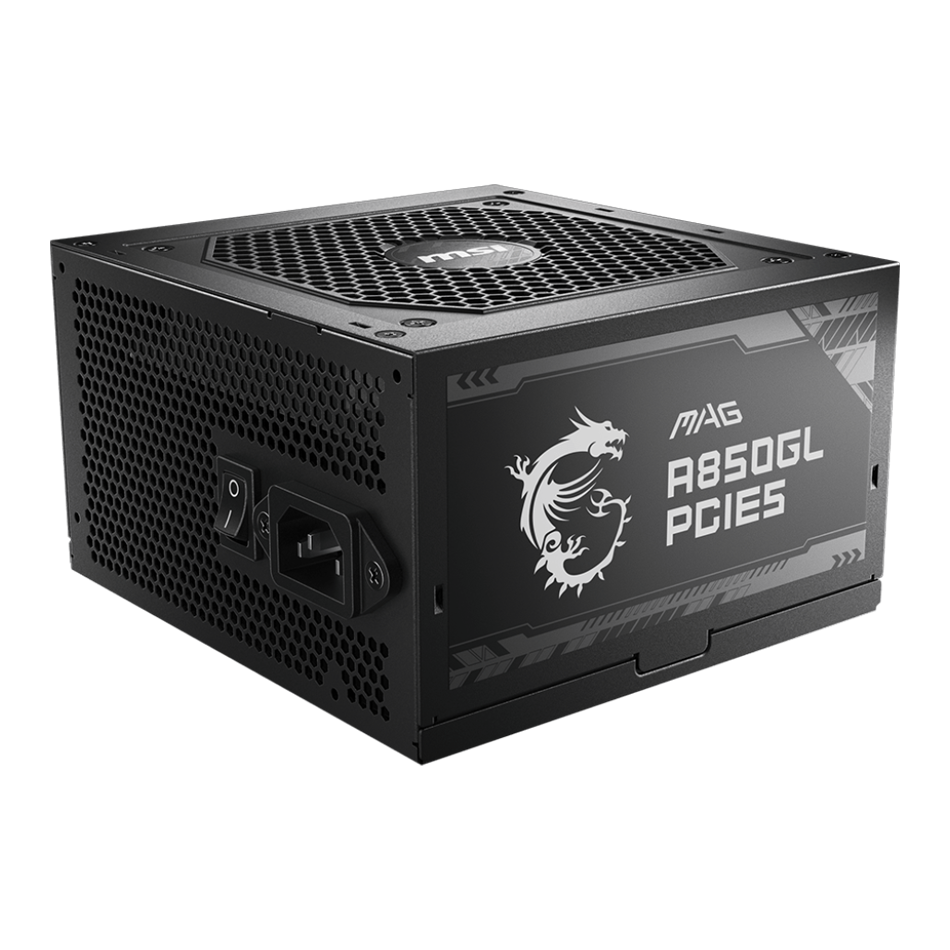

MSI MAG A850GL 850W PCIE 5V Full Modular 80 Plus Gold ATX3.0 Power Supply - Black

MSI MAG A850GL 850W PCIE 5V Full Modular 80 Plus Gold ATX3.0 Power Supply Unit - Black

Unite as one

The MAG series fights alongside gamers in pursuit of honor.

With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

ATX 3.0 compatible

It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.

80 PLUS GOLD CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

COMPACT SIZING

Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

ONLY WHAT YOU NEED

The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED

Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

FLUID DYNAMIC BEARING

The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.

DC to DC & Full bridge

DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

THE POWER YOU HAVE

The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.

PROTECTION MECHANISMS

To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.

Specifications

• Efficiency Rating : 80 PLUS Gold (up to 90%)

• Modular : Yes (full modular)

• Fan Size : 120 mm

• Fan Bearing : Fluid Dynamic Bearing

• Dimensions (DxWxH) : 140 x 150 x 86 mm

• PFC Type : Active PFC

• Input Voltage Range : 100~240 VAC

• Power Watt : 850W

• Power Excursion : 1700W (*up to 200% of the PSU's rated power for 100μs)

• Input Frequency Range : 47-63Hz

• Protection : OCP / OVP / OPP / OTP / SCP / UVP

• ATX (24 pin) : 1

• EPS (4+4 pin) : 2

• PCI-E 5.0 (16 pin) : 1 (600W)

• PCI-E (6+2 pin) : 4

• SATA (15 pin) : 8

• MOLEX (4 pin) : 4

• FDD (4 pin) : 1
