MSI SPATIUM M570 PCIe 5.0 NVMe M.2 2TB HS

MSI SPATIUM M570 PCIe GEN 5.0 x 4 NVMe M.2 2280 SSD - 2TB with Heatsink

M570

CHARGING AHEAD WITH SPEED

From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.

• Read : 10000 MB/s
• Write : 10000 MB/s

SUPERCHARGED WITH GEN 5

Get excited for next-generation storage performance that unites the latest PCIe Gen 5 controller technology and state-of-the-art 3D NAND flash, providing up to 1.5 times faster read/write speeds compared to the previous generation SSDs.

A Need for Speed!

Optimized for the PCIe Gen5 interface, SPATIUM M570 SSD reaches read/write speeds up to 10000/10000 MB/s, allowing for rapid data transfer and shortened game load times.

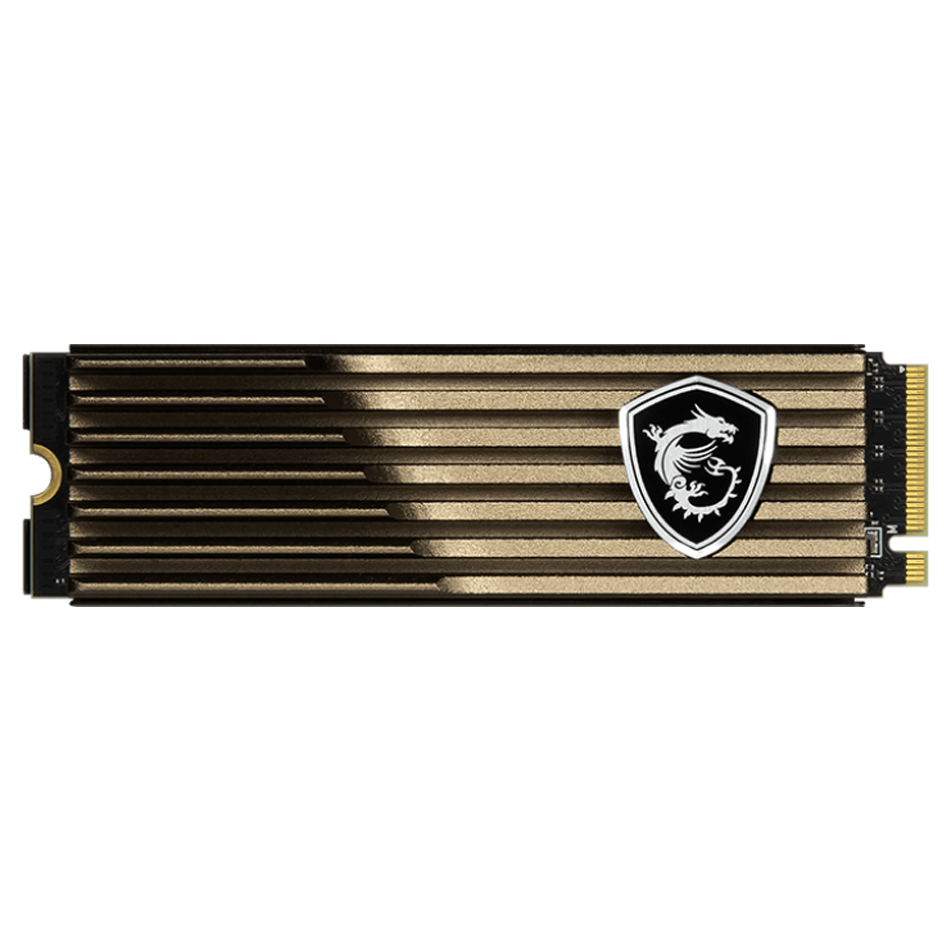

Aluminum Heatsink

SPATIUM M570 sports a gorgeous bronze-colored aluminum heatsink with a stacked fin structure that efficiently dissipates heat and allows the SSD to sustain maximum performance under heavy load. *Disclaimer: Performance may vary based on system hardware & software configuration.

Fulfill Unlimited Potential

Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage, empowering you to break records in games or take your talents to the next level.

Freeing Up Space

TRIM

To process unnecessary data efficiently and extend the life of SSD for more games or content creations.

Gaining Controls

S.M.A.R.T

To Monitor the health of the drive and identify possible issues, letting you be free from worry in games or at work.

Error Removal

ECC

To maintain your important records or files intact and ensure a nonstop gaming experience from system failure.

Steady Transfer

E2E DATA PROTECTION

To enable reliable data transfer and assist you to game and create in confidence with enhanced system stability.

BUILT TO WIN

With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.

CREATE. PRODUCE. DONE.

SPATIUM SSDs get more done by opening up images, movies, documents, and heavy-duty applications at lightning speeds, keeping up your nonstop creativity and productivity.

Specifications

• Model Name : SPATIUM M570 PCIe 5.0 NVMe M.2 HS
• Capacity  : 2TB
• Controller  : PHISON E26
• Flash Memory  : 3D NAND
• DRAM Cache  : 4GB LPDDR4
• Form Factor  : M.2 2280
• Interface  : PCIe Gen5x4, NVMe 2.0
• Compatibility  : PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1
• Dimensions   : 80.00mm (L) x 22.00mm (W) x 3.5mm (H) (w/o heatsink)
• 80.40mm (L) x 23.00mm (W) x 20.40mm (H) (w/ heatsink)
• Sequential Read up to (MB/s)  : 10,000
• Sequential Write up to (MB/s)  : 10,000
• Random Read 4KB up to (IOPS)  :   1,400,000
• Random Write 4KB up to (IOPS)  : 1,500,000
• Maximum Operating Power (W)  : 11
• Operating Temperatures  : 0°C – 70°C
• Storage Temperatures  : -40°C – 85°C
• Terabytes Written (TBW)  : 700     1400
• Mean Time Between Failure (MTBF)  : Up to 1,600,000 Hours
• Advanced Features  : TRIM (Performance Optimization, OS Support required)

                                                    SMART (Self-Monitoring, Analysis and Reporting Technology)

                                                    LDPC (Low Density Parity Check) ECC Algorithm

                                                    End to End Data Path Protection

                                                    APST (Autonomous Power State Transition)
