MSI SPATIUM M570 PRO PCIe 5.0 NVMe M.2 2TB FROZR

MSI SPATIUM M570 PRO FROZR - PCIe GEN 5.0 x 4 NVMe 2.0 M.2 SSD - 2TB

A NEED FOR SPEED

Optimized for the PCIe Gen5 interface, SPATIUM M570 PRO SSD reaches read/write speeds up to 12,400/11,800 MB/s, allowing for rapid data transfer and shortened game load times.

Sequential Read : 12,400MB/s

Sequential Write : 11,800MB/s

SUPERCHARGED WITH

PCIe 5.0

Get excited for next-generation storage performance that unites the latest PCIe Gen 5 controller technology and state-of-the-art 3D NAND flash, providing up to 1.8 times faster read/write speeds compared to the previous generation SSDs.

TAKING GIANT

LEAPS

The SPAITUM M570 PRO delivers immense performance and capabilities that effortlessly handle even the most extreme gaming or productivity workflows, representing a significant advancement over PCIe 3.0 and SATA technologies.

SMALL SIZEMORE STORAGE

The latest 3D NAND flash technology brings dense storage in a compact design and allows SPATIUM storage capacities up to 4TB.

COOL & SILENT

TOWERING PERFORMANCE

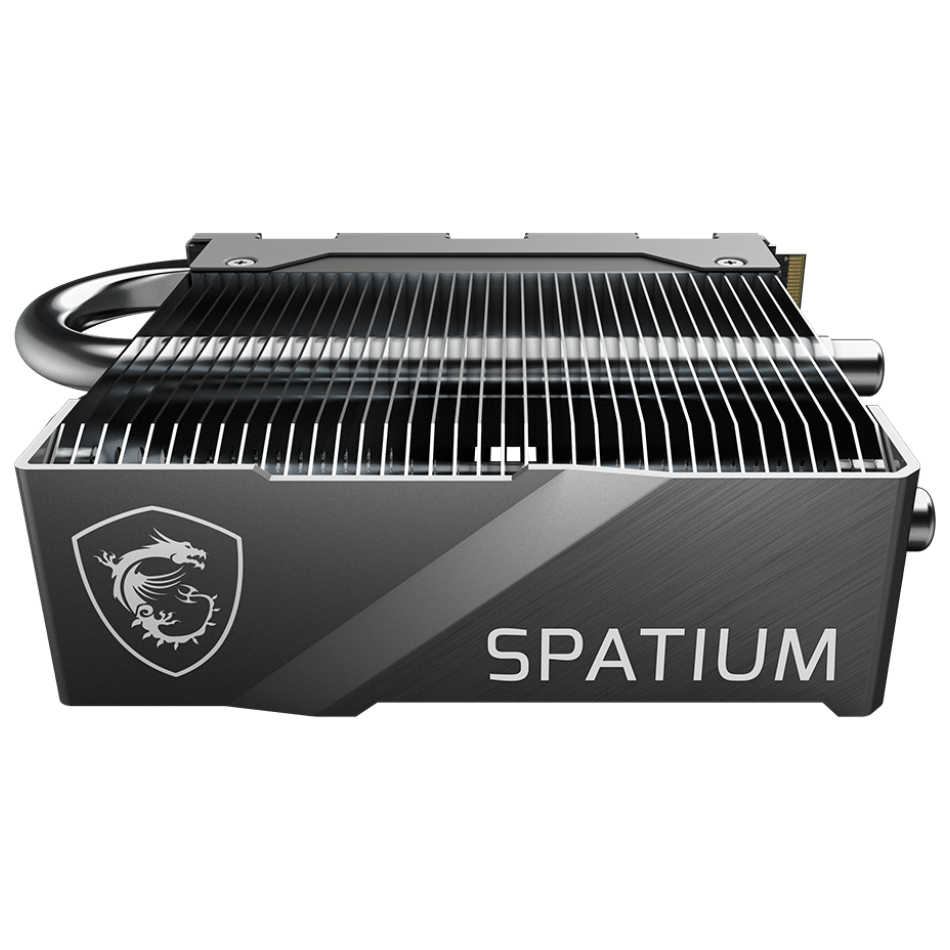

FROZR is a new enthusiast passive SPATIUM SSD thermal solution designed with well-pathed Core Pipes and an optimal surfaced heatsink under a stylish cover, silently sustaining maximum storage while reducing temperatures by up to 20° C

FITS RIGHT IN

The FROZR Heatsink is designed for the standard M.2 size of 22 x 80mm which seamlessly accommodates most graphics card backplates, preventing interference in the gap between the SSD and graphics cards.

FULFILL UNLIMITED POTENTIAL

Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage, empowering you to break records in games or take your talents to the next level.

Freeing Up Space

TRIM

To process unnecessary data efficiently and extend the life of SSD for more games or content creations.

Gaining Controls

S.M.A.R.T

To Monitor the health of the drive and identify possible issues, letting you be free from worry in games or at work.

Error Removal

ECC

To maintain your important records or files intact and ensure a nonstop gaming experience from system failure.

Steady Transfer

E2E DATA PROTECTION

To enable reliable data transfer and assist you to game and create in confidence with enhanced system stability.

Data Safekeeper

AES 256

Keeping your personal record or data safe & sound in a fast process with hardware-based encryption.

A THOROUGH SHORTCUT WITHDIRECTSTORAGE

DirectStorage accelerates loading times in gameplay and high-resolution rendering, enhancing system performance by enabling hardware decompression directly from NVMe drives to GPUs and freeing up CPU resources for multitasking.

DirectStorage

Your Performance Booster

BUILT TO WIN

With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.

TAKE CARE OF YOUR DATA

Migrate your data, monitor drive health and performance metrics in real-time with MSI Center. Prevent loss of data using the provided Actiphy software solution which includes backup & restore functionality.

OPTIMAL M.2 SSD

Designed in the M.2 2280 form factor, SPATIUM SSDs are easy to install into desktops, bringing speedy performance and power efficiency to any computing system.

Specifications

• Model Name  : SPATIUM M570 PRO PCIe 5.0 NVMe M.2 FROZR
• Capacity  : 2TB

• Controller  : PHISON E26
• Flash Memory  : 3D NAND
• DRAM Cache  : 4GB LPDDR4
• Form Factor  : M.2 2280
• Interface  : PCIe Gen5x4, NVMe 2.0
• Compatibility  : PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1
• Dimensions  : 94.80mm (L) x 24.00mm (W) x 71.65mm (H)
• Recommended installation space: up to 22 x 110 mm available
• Sequential Read up to (MB/s)  :  12,400

• Sequential Write up to (MB/s)  :   11,800
• Maximum Operating Power (W)  : 11.5

• Idle Power PS3 (mW)  : 144
• Low Power L1.2 (mW)  : 85
• Operating Temperatures  : 0°C – 70°C
• Storage Temperatures  : -40°C – 85°C
• Terabytes Written (TBW)  : 1400
• Mean Time Between Failure (MTBF)  : Up to 1,600,000 Hours
• Advanced Features  : TRIM (Performance Optimization, OS Support required)

                                                        SMART (Self-Monitoring, Analysis and Reporting Technology)

                                                        LDPC (Low Density Parity Check) ECC Algorithm

                                                        End to End Data Path Protection

                                                        APST (Autonomous Power State Transition)

                                                        AES256/OPAL 2.0 (Encryption, Data Security)
