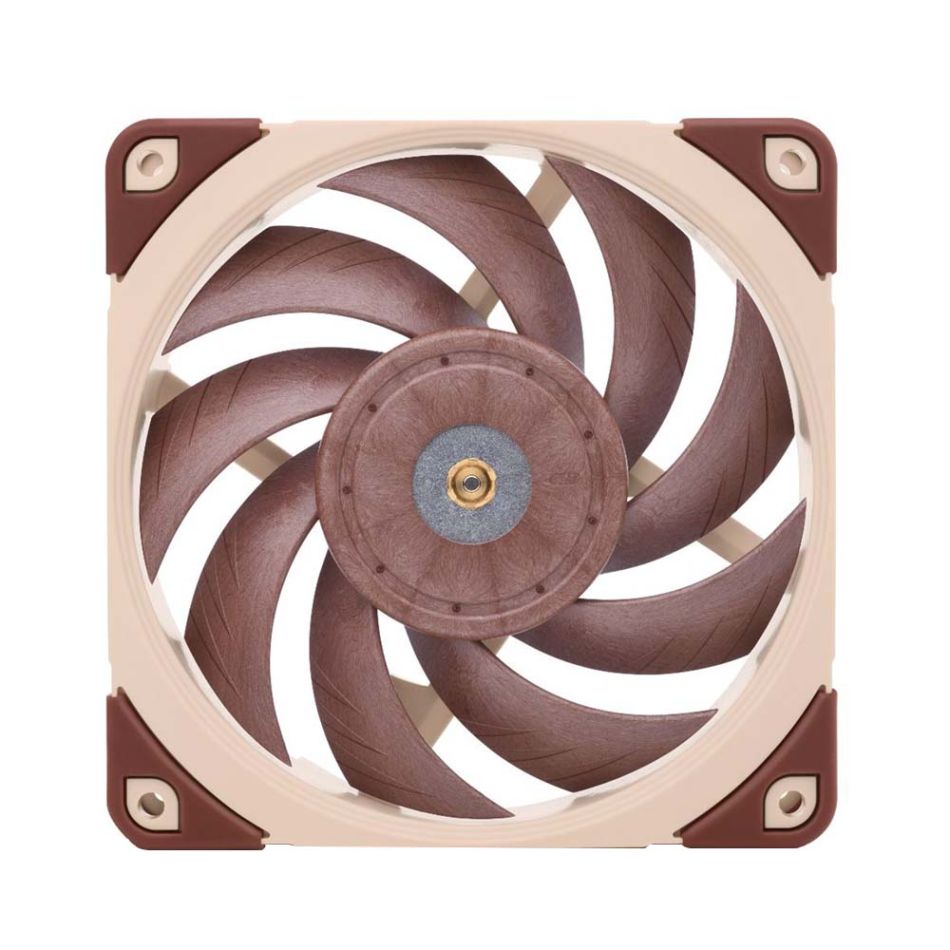

NOCTUA NF-A12x25 5V PWM 120mm Premium Silent Fan - Brown
Brand
Noctua
- Premium quiet fan, 120x120x25mm, 5V, 4-pin PWM, 1900 RPM, max. 21.4 dB(A), >150,000 h MTTF
- Next-generation 120x25mm A-series design provides unprecedented quiet cooling performance, ideal for CPU coolers and watercooling radiators
- 5V 4-pin PWM version with polarity protection for 5V applications with PWM speed control
- USB power adaptor cable allows the fan to run on devices with USB host ports, power banks or USB power supplies such as those used by smartphones
- Includes anti-vibration mounts, fan screws, extension cable and OmniJoin adaptor set for connection to proprietary fan headers
Categories:
NOCTUA NF-A12x25 5V PWM 120mm Premium Silent Fan - Brown
The NF-A12x25 5V PWM is a PWM-enabled 5V variant of Noctua’s award-winning, premium-quality NF-A12x25 120mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame and sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A12x25 is renowned for its superior performance and outstanding quietness of operation. Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearing guarantee superb running smoothness and excellent long-term stability. Topped off with the included USB power adaptor cable, OmniJoin™ adaptor set and 6-year manufacturer’s warranty, the NF-A12x25 5V PWM is a premium choice for demanding 5V applications that require PWM control.
Being a 5V fan, the NF-A12x25 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers
Specifications
- Fan Size : 120x120x25 mm
- Mounting hole spacing : 105x105 mm
- Connector & pin-configuration : 4-pin PWM
- Cable length : 20cm + 30cm NA-EC1 extension cable
- Bearing : SSO2
- Blade Geometry: A-Series with Flow Acceleration Channels
- Frame Technology: AAO (Advanced Acoustic Optimisation)
- Material : Sterrox® LCP
- Rotational speed (+/- 10%) : 1900 RPM
- Min. rotational speed @ 20% PWM (+/-20%) : 450 RPM
- Airflow : 96,2 m³/h
- Acoustical noise : 21,4 dB(A)
- Static pressure : 2,07 mm H₂O
- Input power (typical) : 1,48 W
- Input power (max.) : 1,75 W
- Input current (typical) : 0,3 A
- Max. input current : 0,35 A
- Operating voltage : 5 V
- Voltage PWM signal : 5 V
- MTTF : > 150.000 h
- Scope of delivery : 30cm extension cable
NA-AV2 anti-vibration mounts
USB power adaptor cable
OmniJoin adaptor set
Fan screws
