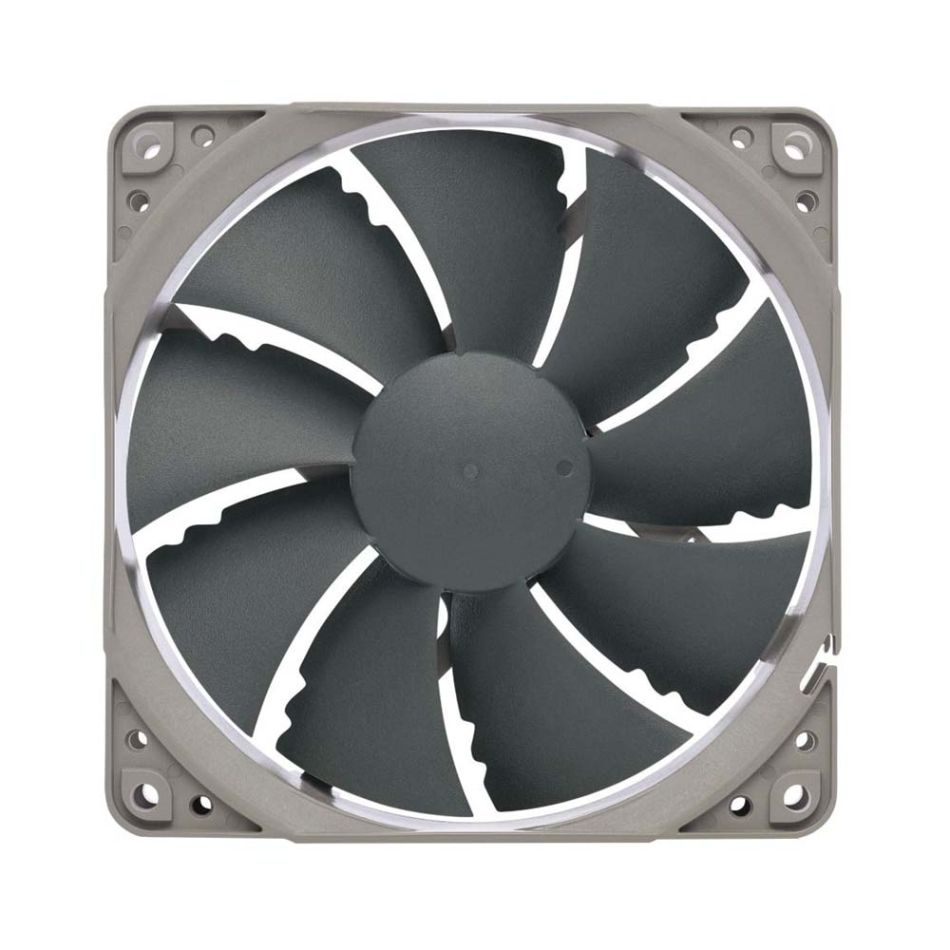

NOCTUA NF-P12 redux-1700 PWM 120mm High Performance Fan - Gray
Brand
Noctua
- High performance cooling fan, 120x120x25 mm, 12V, 4-pin PWM, max. 1700 RPM, max. 25.1 dB(A), >150,000 h MTTF
- Renowned NF-P12 high-end 120x25mm 12V fan, more than 100 awards and recommendations from international computer hardware websites and magazines, hundreds of thousands of satisfied users
- Pressure-optimised blade design with outstanding quietness of operation: high static pressure and strong CFM for air-based CPU coolers, water cooling radiators or low-noise chassis ventilation
- 1700rpm 4-pin PWM version with excellent balance of performance and quietness, supports automatic motherboard speed control (powerful airflow when required, virtually silent at idle)
- Streamlined redux edition: proven Noctua quality at an attractive price point, wide range of optional accessories (anti-vibration mounts, S-ATA adaptors, y-splitters, extension cables, etc.)
Categories:
NOCTUA NF-P12 redux-1700 PWM 120mm High Performance Fan - Gray
Specifically designed for pressure demanding applications such as CPU or radiator cooling, the classic NF-P12 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P12 premium fan. Its industry grade SSO bearing, over 150.000 hours MTTF rating and full 6 years manufacturer’s warranty make the NF-P12 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The performance-oriented top speed of the 1700rpm PWM version is ideal for high efficiency case, radiator and CPU cooling as well as other applications that require both extended performance headroom and PWM for automatic speed control.
Specifications
- Fan Size : 120x120x25 mm
- Mounting hole spacing : 105x105 mm
- Connector & pin-configuration : 4-pin PWM
- Cable length : 40cm
- Bearing : SSO-Bearing
- Blade geometry : Pressure-optimized Nine Blade Design with Vortex-Control Notches
- Rotational speed (+/- 10%) : 1700 RPM
- Min. rotational speed @ 20% PWM (+/-20%) : 450 RPM
- Airflow : 120,2 m³/h
- Acoustical noise : 25,1 dB(A)
- Static pressure : 2,83 mm H₂O
- Input power (typical) : 0,95 W
- Input power (max.) : 1,08 W
- Input current (typical) : 0,08 A
- Max. input current : 0,09 A
- Operating voltage : 12 V
- MTTF : > 150.000 h
- Scope of delivery : Fan screws
