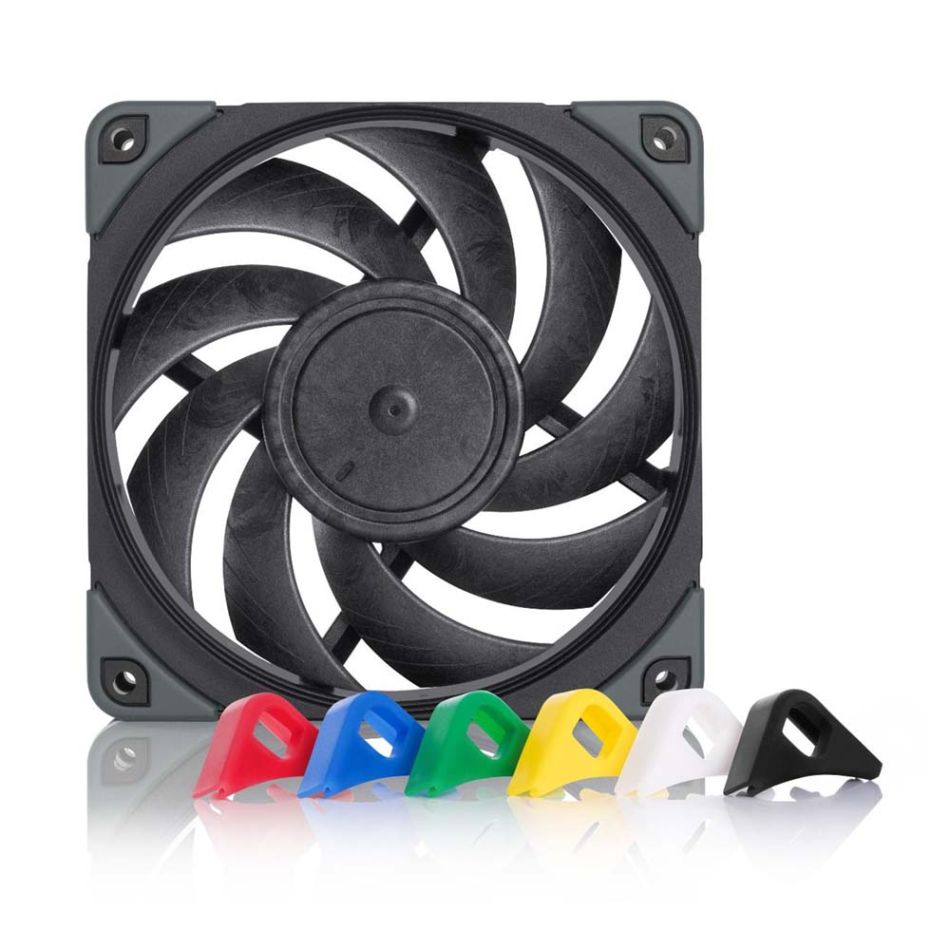

NOCTUA NF-A12x25 PWM Chromax 120mm Premium Silent Fan with Swappable Pads - Black
Brand
Noctua
- Premium quiet fan, 120x120x25mm, 12V, 4-pin PWM, max. 2000 RPM, max. 22.6 dB(A), >150,000 h MTTF
- Next-gen A-series design combines high airflow and high static pressure performance, ideal both as a case fan and for CPU coolers, watercooling radiators and AIO liquid cooling systems
- State-of-the-art engineering (AAO frame, Flow Acceleration Channels, record tight 0.5mm tip clearance) and construction (Sterrox LCP material, metal-reinforced hub, metal bearing shell, etc.)
- 4-pin PWM version for automatic speed control via 4-pin PWM motherboard fan headers, 450-2000rpm speed range (near silent at idle, powerful under load)
- chromax.black.swap edition with swappable red, black, white, blue, yellow, grey and green anti-vibration pads for colour-customising (4 pads of each colour plus black anti-vibration gasket)
Categories:
NOCTUA NF-A12x25 PWM Chromax 120mm Premium Silent Fan with Swappable Pads - Black
Having received more than 100 awards and recommendations from international hardware websites and magazines, Noctua’s flagship model NF-A12x25 has established itself as a true deluxe choice when it comes to premium-quality quiet 120mm fans. Various state-of-the-art technologies and a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox® liquid-crystal polymer material, allow it to achieve superb results in all types of usage: Whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators, the NF-A12x25 is a proven winner. The chromax.black.swap edition combines the NF-A12x25’s signature quiet cooling performance with an attractive black design and a bundle of swappable red, white, blue, green, grey, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. For further customisation, a wide range of accessories such as coloured cables and anti-vibration mounts are available separately. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-A12x25 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.
Specifications
- Fan Size : 120x120x25 mm
- Mounting hole spacing : 105x105 mm
- Connector & pin-configuration : 4-pin PWM
- Cable length : 1cm + 30cm NA-EC1 extension cable
- Bearing : SSO2
- Blade geometry : A-Series with Flow Acceleration Channels
- Frame technology : AAO (Advanced Acoustic Optimisation)
- Material : Sterrox® LCP
- Rotational speed (+/- 10%) : 2000 RPM
- Min. rotational speed @ 20% PWM (+/-20%) : 450 RPM
- Airflow : 102,1 m³/h
- Acoustical noise : 22,6 dB(A)
- Static pressure : 2,34 mm H₂O
- Input power (typical) : 1,2 W
- Input power (max.) : 1,68 W
- Input current (typical) : 0,1 A
- Max. input current : 0,14 A
- Operating voltage : 12 V
- Voltage PWM signal : 5 V
- MTTF : > 150.000 h
- Scope of delivery : 4x NA-AVP1 chromax.black anti-vibration pads
4x NA-AVP1 chromax.blue anti-vibration pads
4x NA-AVP1 chromax.green anti-vibration pads
4x NA-AVP1 chromax.red anti-vibration pads
4x NA-AVP1 chromax.white anti-vibration pads
4x NA-AVP1 chromax.yellow anti-vibration pads
4x NA-AVP1 grey anti-vibration pads
NA-AVG1 chromax.black anti-vibration gasket for water cooling radiators
Fan screws
