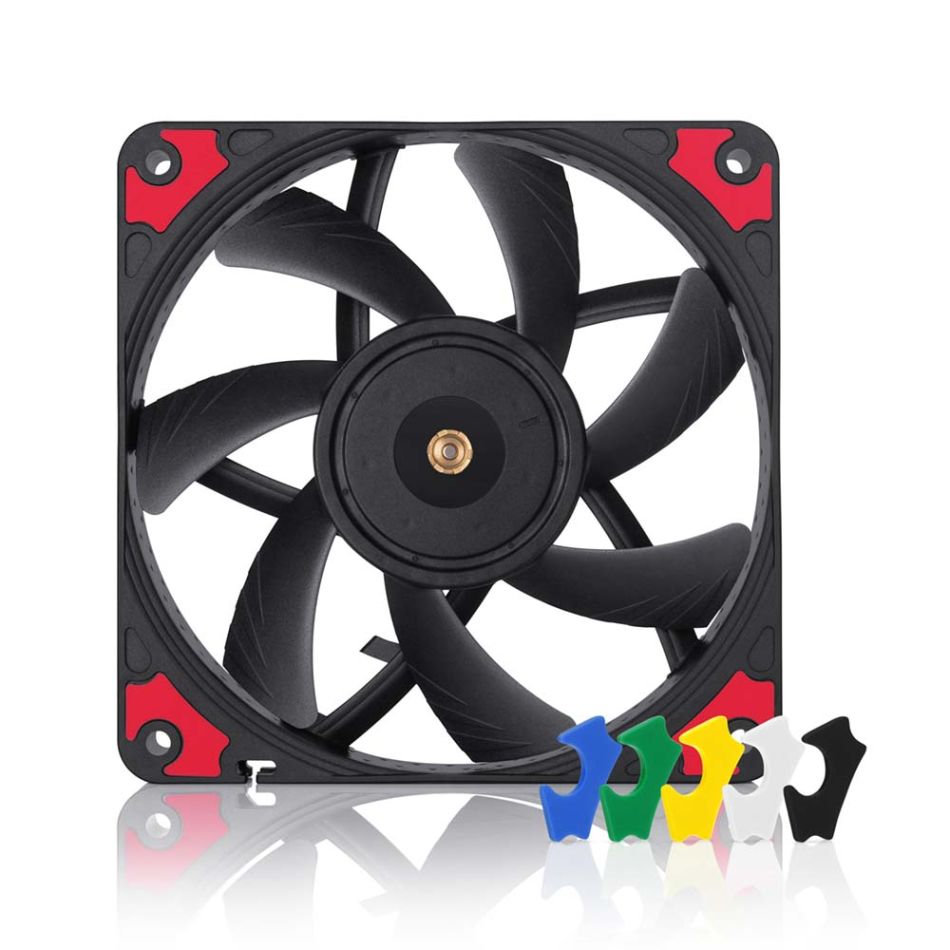

NOCTUA NF-A12x15 PWM Chromax 120mm Premium Slim Fan With Swappable pads - Black
Brand
Noctua
- Premium quiet slim fan, 120x120x15mm, 12V, 4-pin PWM, max. 1850 RPM, max. 23.9 dB(A), >150,000 h MTTF
- Award-winning 120x15mm A-series fan with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior quiet cooling performance
- 120x15mm slim design ideal for low-profile CPU coolers, HTPCs, ITX builds, space-restricted applications etc.
- 4-pin PWM version for automatic speed control via 4-pin PWM fan headers, broad 450-1850rpm speed range, stops at 0% PWM for semi-passive systems
- chromax.black.swap edition with all-black design and self-adhesive red, black, white, blue, yellow and green anti-vibration pads for colour-customising (8 pads of each colour)
Categories:
NOCTUA NF-A12x15 PWM Chromax 120mm Premium Slim Fan With Swappable pads - Black
Having received dozens of awards and recommendations from international hardware websites and magazines, the NF-A12x15 has established itself as a default choice when it comes to premium-quality slim 120mm fans. The chromax.black.swap edition combines the NF-A12x15’s signature quiet cooling performance with an attractive all-black design and a bundle of self-adhesive red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-12x15 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.
Specifications
- Fan Size : 120x120x15 mm
- Mounting hole spacing : 105x105 mm
- Connector & pin-configuration : 4-pin PWM
- Cable length : 1cm + 30cm NA-EC1 extension cable
- Bearing : SSO2
- Blade geometry : A-Series with Flow Acceleration Channels
- Frame technology : AAO (Advanced Acoustic Optimisation)
- Rotational speed (+/- 10%) : 1850 RPM
- Min. rotational speed @ 20% PWM (+/-20%) : 450 RPM
- Airflow : 94,2 m³/h
- Acoustical noise : 23,9 dB(A)
- Static pressure : 1,53 mm H₂O
- Input power (typical) : 1,27 W
- Input power (max.) : 1,56 W
- Input current (typical) :0,11 A
- Max. input current : 0,13 A
- Operating voltage : 12 V
- Voltage PWM signal : 5 V
- MTTF : > 150.000 h
- Scope of delivery : 8x NA-AVP7 chromax.black anti-vibration pads
8x NA-AVP7 chromax.blue anti-vibration pads
8x NA-AVP7 chromax.green anti-vibration pads
8x NA-AVP7 chromax.red anti-vibration pads
8x NA-AVP7 chromax.white anti-vibration pads
8x NA-AVP7 chromax.yellow anti-vibration pads
4x fan screws
