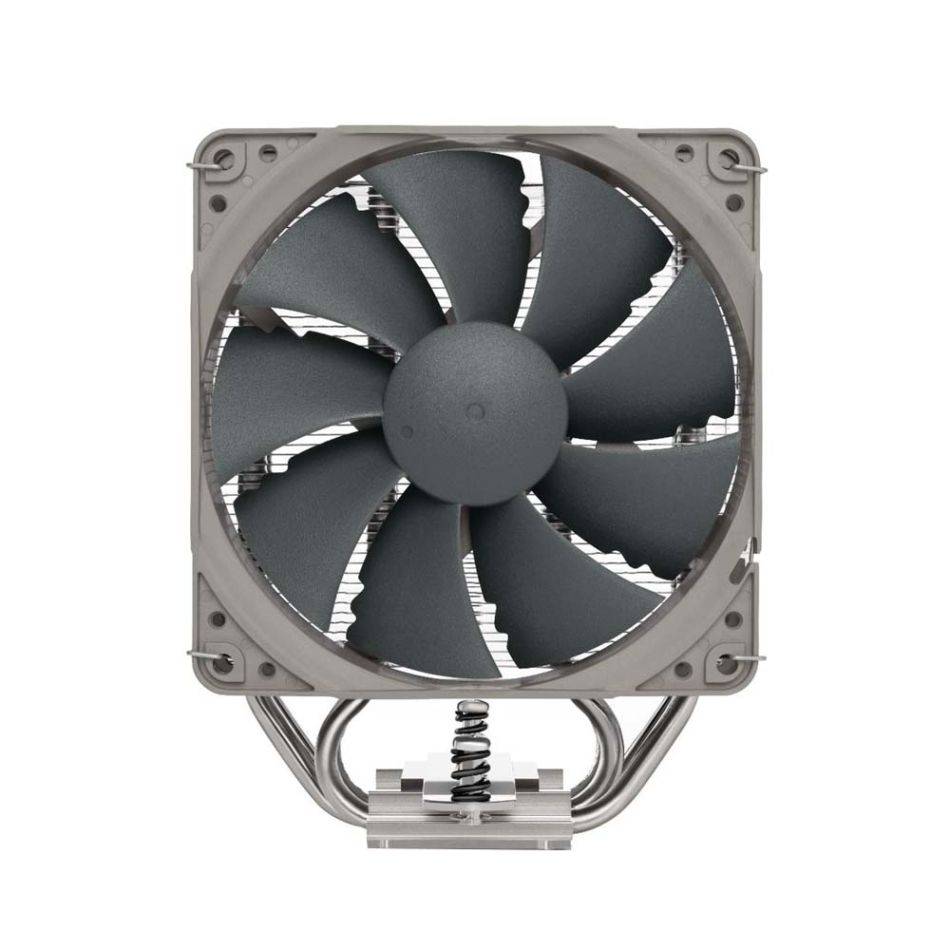

NOCTUA NH-U12S Redux PWM 120mm High Performance CPU Air Cooler - Grey
Brand
Noctua
- Streamlined, more affordable redux line version of the award-winning NH-U12S heatsink
- Slim 120mm size for excellent case, RAM and PCIe compatibility: fits most tower cases (158mm height), doesn’t overhang the RAM slots, doesn’t block the PCIe on most ATX and Micro-ATX motherboards
- Quiet NF-P12 redux-1700 120mm fan with PWM for automatic speed control: full cooling performance under load, near silent at idle!
- Pre-applied high-quality NT-H1 thermal paste & SecuFirm2 mounting system for easy installation on Intel LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA2066 and AMD AM4 & AM5
- Renowned Noctua quality at an attractive price, smart choice for Intel Core i9, i7, i5, i3 (e.g. 13900, 13700, 13600) and AMD Ryzen (e.g. 7950X3D, 7900X3D, 7800X3D, 7700)
Categories:
NOCTUA NH-U12S Redux PWM 120mm High Performance CPU Air Cooler - Grey
True to the spirit of Noctua’s redux line, the NH-U12S redux is a streamlined, accessibly priced version of the iconic NH-U12S that has established itself as a benchmark for slim, highly compatible 120mm CPU coolers. The redux version uses the same proven heatsink layout that guarantees 100% compatibility with tall RAM modules as well as excellent case and PCIe compatibility. Thanks to the popular NF-P12 redux-1700 PWM fan with automatic speed control, it provides high performance under load and runs whisper-quiet at idle. At the same time, Noctua’s renowned, professional SecuFirm2™ mounting system and the pre-applied NT-H1 thermal compound make installation child’s play. Backed up with Noctua’s trusted 6-year manufacturer’s warranty, the NH-U12S redux is a smart, affordable choice for a quiet, high-quality 120mm cooler.
Specifications
Cooler
- Socket compatibility : Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP78), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM4, AM5
- Height (without fan) : 158 mm
- Width (without fan) : 125 mm
- Depth (without fan) : 45 mm
- Height (with fan) : 158 mm
- Width (with fan) : 125 mm
- Depth (with fan) : 71 mm
- Weight (with fan) : 710 g
- Material : Nickel plated Copper (base and heat-pipes), aluminium (cooling fins)
- NSPR : 129
- Max. TDP : see NSPR
- Fan compatibility : 120x120x25
- Scope of delivery : NH-U12S redux heatsink
NF-P12 redux-1700 PWM fan
4x NA-AVP1 chromax.grey anti-vibration pads
Fan mounting clips (one pair)
NT-H1 high-grade thermal compound (pre-applied)
SecuFirm2™ mounting kit
FAN
- Model : NF-P12 redux-1700 PWM
- Bearing : SSO
- Max. rotational speed (+/- 10%) : 1700 RPM
- Min. rotational speed @ 20% PWM (+/-20%) : 450 RPM
- Max. airflow : 120,2 m³/h
- Max. acoustical noise : 25,1 dB(A)
- Voltage range : 12 V
- MTTF : > 150.000 h
