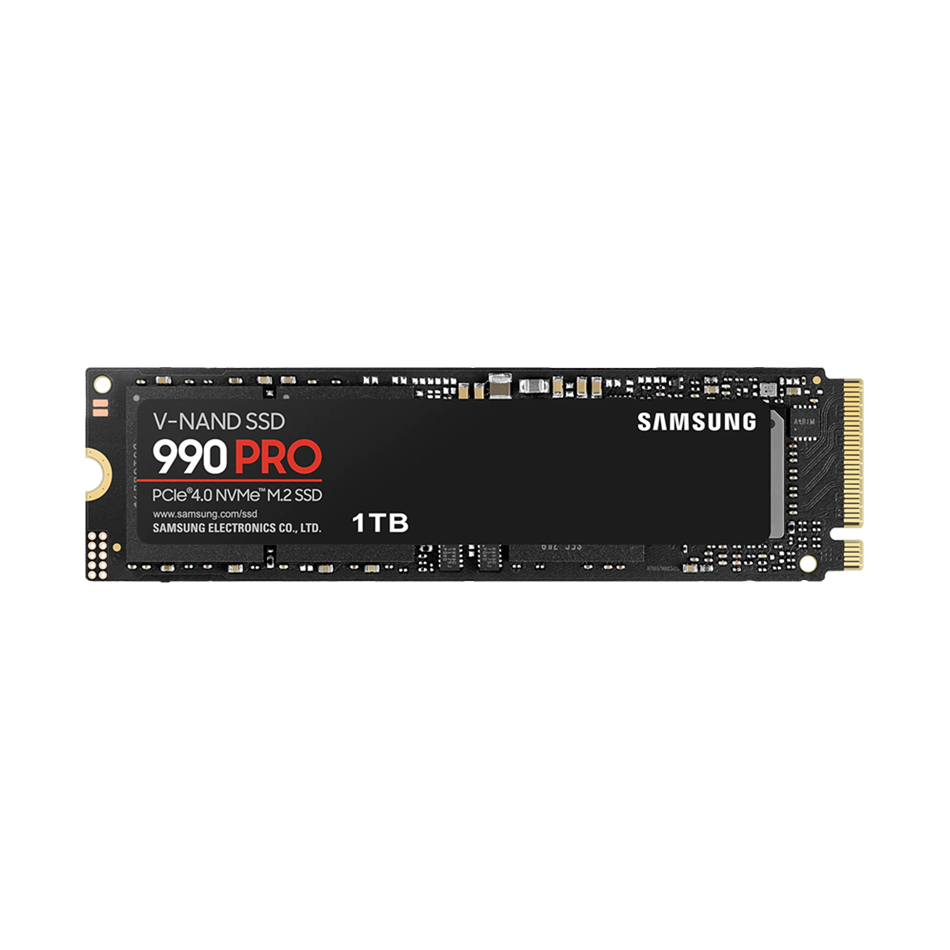

SAMSUNG 990 PRO NVMe M.2 SSD 1TB

SAMSUNG 990 PRO PCIe 4.0 NVMe M.2 SSD - 1TB

Blistering speed, endless victory

Experience long-lasting fast performance of PCIe® 4.0. The in-house controller's smart heat control delivers supreme power efficiency while maintaining speed and performance to help keep you on the top of your game¹.

PCIe 4.0 speed maximised

Huge speed boost. Up to 40% and 55% faster random read/write speeds than 980 PRO - up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near max performance of PCIe® 4.0². Fly high in gaming, video and 3D editing, data analysis, and more.

Incredible power efficiency

More power-efficient performance. Higher performance usually consumes more power. But, 990 PRO uses less power with over 50% improved performance per Watt over 980 PRO³.This low-power design delivers outstanding PCIe® 4.0 performance possible with optimal power efficiency.

Smart thermal solution

Speed beyond the heat. The nickel-coated controller and cutting-edge thermal control algorithm helps to manage heat for stable performance.The heat spreader label controls NAND chip heat, while Dynamic Thermal Guard keeps temperatures stable.

Game like a pro

990 PRO’s expanded 4TB capacity empowers you with a random read speed of up to 1,600,000 IOPS. Witness impressive loading times on your PC and PlayStation® 5, as it breathes life into your games4.

Samsung Magician software

Harness the full power of 990 PRO. Samsung Magician software's user-friendly suite of optimisation tools help enhance the performance of your Samsung SSD⁵. Protect data, get updates, monitor drive health, and set up LED colour combinations6. It's your personal SSD toolkit.

World's No. 1 Flash Memory Seller7

Experience superior performance and reliability you only get from the world's No.1 flash memory brand since 2003. All components and firmware are produced in-house, including Samsung's world-renowned DRAM and NAND, for integrated start-to-finish quality you can trust.

Specifications

General Feature

• Application Client PCs, Game Consoles
• Rated Capacity 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
• Form Factor M.2 (2280)
• Interface PCIe Gen 4.0 x4, NVMe 2.0
• Dimension (WxHxD) 80 x 22 x 2.3 mm
• Weight Max 9.0g Weight
• Storage Memory Samsung V-NAND 3-bit MLC
• Controller Samsung in-house Controller
• Cache Memory Samsung 1GB Low Power DDR4 SDRAM

Special Feature

• TRIM Support Supported
• S.M.A.R.T Support Supported
• GC (Garbage Collection) Auto Garbage Collection Algorithm
• Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
• WWN Support Not supported
• Device Sleep Mode Support Yes

Performance

• Sequential Read Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
• Sequential Write Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
• Random Read (4KB, QD32) Up to 1,200,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4KB, QD32) Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration
• Random Read (4KB, QD1) Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4KB, QD1) Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

Environment

• Average Power Consumption (system level) *Average: 5.4 W*Maximum: 7.8 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
• Power consumption (Idle) Max. 50 mW * Actual power consumption may vary depending on system hardware & configuration
• Allowable Voltage 3.3 V ± 5 % Allowable voltage
• Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
• Operating Temperature 0 - 70 ℃ Operating Temperature
• Shock 1,500 G & 0.5 ms (Half sine)

Accessories

• Installation Kit Not Available

Software

• Management SW Magician Software for SSD management
