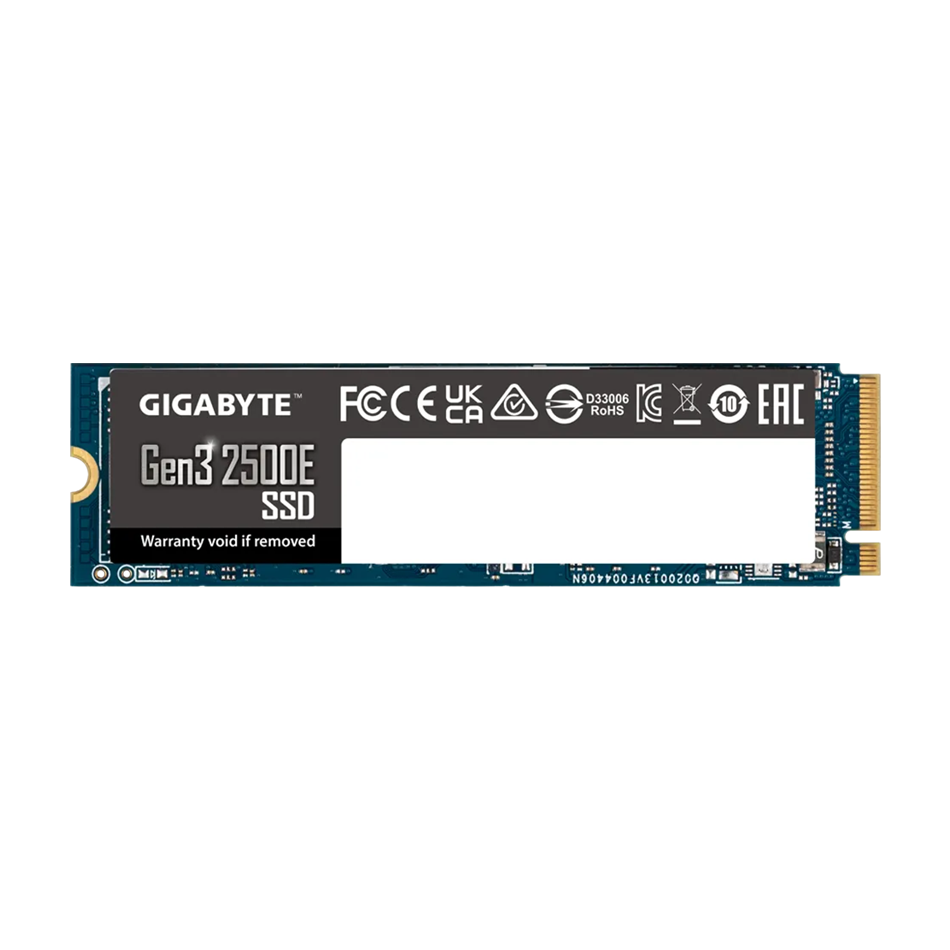

GIGABYTE Gen3 2500E SSD 1TB

GIGABYTE GEN3 2500E - PCIe 3.0x4 NVMe 1.3 M.2 SSD - 1TB

Upgrade Easily with GIGABYTE Gen3 2500E SSD

PCIe 3.0x4, NVMe 1.3

A worthy choice for your PC upgrade

GIGABYTE Gen3 2500E SSD adopts Phison’s controller and high-quality 3D NAND, delivers up to 2400 MB/s sequential read and 1800 MB/s sequential write performance. By utilizing Host Memory Buffer technology, the SSD controller can access the host DRAM without performance loss. Furthermore, GIGABYTE Gen3 2500E SSD features TRIM, SMART, and Over-Provision support to secure your data and perform stably.

+PCIe 3.0x4, NVMe1.3 interface

+ Sequential Read Speed : up to 2,400 MB/s

+ Sequential Write speed : up to 1,800 MB/s

+ HMB (Host Memory Buffer) supported

+ TRIM & S.M.A.R.T supported

+ Energy-efficient

Breaking the Barriers of SATA Limitations (1TB)

Outstanding performance

GIGABYTE Gen3 2500E SSD provides performance for your daily computing tasks, boast of best controller & 3D NAND flash.

  Sequential read speeds up to 2400 MB/s

  Sequential write speeds up to 1800 MB/s

GIGABYTE Gen3 2500E SSD gives you faster data transferring experience compared to 2.5" SATA solid state drive.

Host Memory Buffer (HMB)

The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.

* HMB feature is only supported by Windows 10 & 11.

Power Saving While Operating

Comparing with regular PCIe 3.0 x4 SSD, GIGABYTE Gen3 2500E SSD reduces about 40%+ power while operating. Power consumption of the GIGABYTE Gen3 2500E SSD is notably improved.

SSD Tool Box

The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.

Specifications

• Interface : mPCIe 3.0x4, NVMe1.3 interface
• Form Factor : M.2 2280
• Total Capacity : 1000GB
• External DDR Cache : N/A
• Sequential Read speed : Up to 2400 MB/s
• Sequential Write speed : Up to 1800 MB/s
• Random Read IOPS : Up to 130K
• Random Write IOPS : Up to 350K
• Dimension : 22 x 2.3 x 80 mm
• Mean time between failure (MTBF) : 1.5 million hours
• Max. Operating Power : Read: 2670mW

                                                        Write: 3200mW

• Power Consumption (Idle, PS3) : 30mW
• Power Consumption(PS4, L1.2) : 5mW

• Temperature (Operating) : 0°C to 70°C
• Temperature (Storage) : -40°C to 85°C

Note

• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.

 • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.

• Speeds based on internal testing. Actual performance may vary.

• 1GB = 1 billion bytes. Actual useable capacity may vary.
