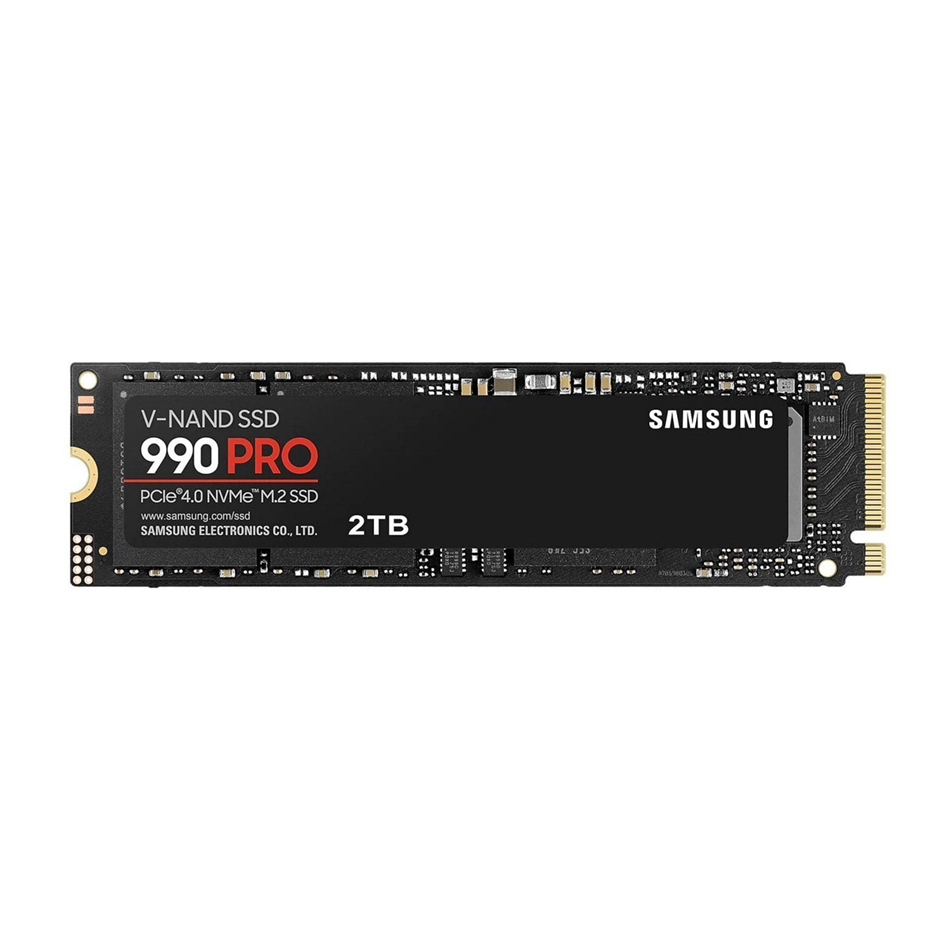

SAMSUNG 990 PRO NVMe M.2 SSD 2TB

SAMSUNG 990 PRO PCIe4.0 NVMe M.2 SSD - 2TB

Blistering speed, endless victory

Experience long-lasting fast performance of PCIe® 4.0. The in-house controller's smart heat control delivers supreme power efficiency while maintaining speed and performance to help keep you on the top of your game¹.

PCIe 4.0 speed maximised

Huge speed boost. Up to 40% and 55% faster random read/write speeds than 980 PRO - up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near max performance of PCIe® 4.0². Fly high in gaming, video and 3D editing, data analysis, and more.

Incredible power efficiency

More power-efficient performance. Higher performance usually consumes more power. But, 990 PRO uses less power with over 50% improved performance per Watt over 980 PRO³.This low-power design delivers outstanding PCIe® 4.0 performance possible with optimal power efficiency.

Smart thermal solution

Speed beyond the heat. The nickel-coated controller and cutting-edge thermal control algorithm helps to manage heat for stable performance.The heat spreader label controls NAND chip heat, while Dynamic Thermal Guard keeps temperatures stable.

The champion maker

An amazing gameplay experience. Huge improvement in random performance enables faster loads for gaming realism on PS5 and DirectStorage PC games⁴.

Samsung Magician software

Harness the full power of 990 PRO. Samsung Magician software's user-friendly suite of optimization tools always gets you the best performance out of your Samsung SSD⁵. Protect data, get updates, monitor drive health, and set up LED color combinations. It's your personal SSD toolkit.

World's No.1 Flash Memory

Experience superior performance and reliability you only get from the world's No.1 flash memory seller since 2003*. All components and firmware are produced in-house, including Samsung's world-renowned DRAM and NAND, for integrated start-to-finish quality you can trust.

Specifications

General Feature

• Application : Client PCs, Game Consoles
• Rated Capacity : 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
• Form Factor : M.2 (2280)
• Interface : PCIe Gen 4.0 x4, NVMe 2.0
• Dimension (WxHxD) : 80 x 22 x 2.3 mm
• Weight : Max 9.0g Weight
• Storage Memory : Samsung V-NAND 3-bit MLC
• Controller : Samsung in-house Controller
• Cache Memory : Samsung 2GB Low Power DDR4 SDRAM

Special Feature

• TRIM Support : Supported
• S.M.A.R.T Support : Supported
• GC (Garbage Collection) : Auto Garbage Collection Algorithm
• Encryption Support : AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
• WWN Support : Not supported
• Device Sleep Mode Support : Yes

Performance

• Sequential Read : Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
• Sequential Write : Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
• Random Read (4KB, QD32) : Up to 1,400,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4KB, QD32) : Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration
• Random Read (4KB, QD1) : Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4KB, QD1) : Up to 80,000 IOPS * Performance may vary based on system hardware & configuratio

Environment

• Average Power Consumption (system level) : *Average: 5.5 W*Maximum: 8.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
• Power consumption (Idle) : Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration
• Allowable Voltage : 3.3 V ± 5 % Allowable voltage
• Reliability (MTBF) : 1.5 Million Hours Reliability (MTBF)
• Operating Temperature : 0 - 70 ℃ Operating Temperature
• Shock : 1,500 G & 0.5 ms (Half sine)

Accessories

• Installation Kit : Not Available

Software

• Management SW : Magician Software for SSD management
