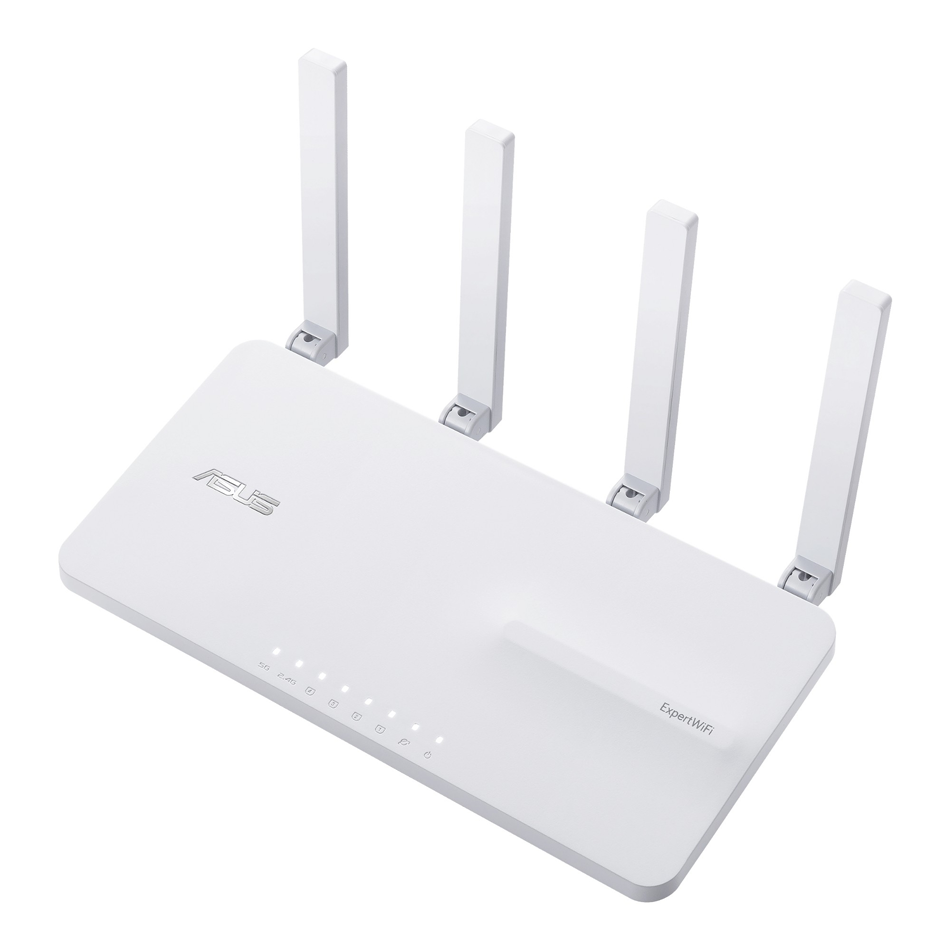

ASUS EXPERT WIFI EBR63 AX3000 Dual-Band WiFi 6 (802.11ax) AIO Access Point With Router - White

ASUS EXPERT WIFI EBR63 - AX3000 Dual-Band WiFi 6 (802.11ax) AIO Access Point with Router

AX3000 Dual-Band WiFi 6 (802.11ax) All in One Access Point with Router, Switch and Security Gateway, supports up to 5 SSIDs, VLAN, SDN, customized guest portal, site-to-site VPN, commercial-grade network security and easy management app.

ASUS ExpertWiFi EBR63

All in One Access Point with Router, Switch and Security Gateway

Your Business WiFi Expert Within Reach

The ASUS ExpertWiFi EBR63 is an all in one access point with router, switch and security gateway functionalities. It offers a fast, secure, and scalable network with rich features tailored for small-to-midsized businesses. Whether used independently or integrated with other ASUS ExpertWiFi solutions, the EBR63 can easily adapt to your business network needs.

Small and Home Offices

For remote employees or those running small businesses, ExpertWiFi provides stable and reliable internet connections. And with comprehensive VPN protocols, users can access their networks with site-to-site VPNs for encrypted office or home network connections, easily and securely.

Retail

ExpertWiFi provides an all-new platform for innovative business services. Brand information and advertising can be promoted via a Guest Portal, to engage with your customers in different ways.

Hostels

ExpertWiFi networking products are prepared to scale to the customers’ needs. The ExpertWiFi series can support up to 12 node connections, so a business can greatly expand the size of its network when using ExpertWiFi devices.

Clinic

To make sure all data and information is secured, the ExpertWiFi series offers commercial-grade network security through a free subscription to ASUS AiProtection Pro and Safe Browsing features.

Speed up your business

A superfast all in one access point for stable downloading and smooth video calls.

Up to 3,000 Mbps

Support 160 MHz Channels

Connect your business to the max

4X greater network capacity with support for WiFi 6, which can lower latency when demand is high.

Support WiFi 6 802.11ax

Dual-Band All-in-one Access Point

Start your business network with one device

Setting up a commercial network typically requires a significant investment in a complicated set of networking products and management fees. However, the ExpertWiFi EBR63 can empower you to easily build a cost-effective commercial network, making it an ideal choice for small businesses on a limited budget. Essential networking features are combined into one device, and we offer comprehensive software features without any subscription fees, so your business can get an edge on the competition. And as your business grows, you can easily extend your network with other ASUS ExpertWiFi products.

Stable business operation

VLAN

ExpertWiFi supports virtual local area network (VLAN) management. VLAN management enables an easy, fast and flexible way to segment the network wired and wirelessly. You can dedicate an Ethernet port that provides additional security for your business.

Dual & backup WAN

The EBR63 provides reliable and stable internet access for business owners. With dual WAN support, you can set the USB port as a backup WAN by connecting it to your mobile phone with a hotspot. No complicated setup is needed — just plug it in and use it.

Easy settings for your business

Separate profiles and usage

A Self-Defined Network (SDN) provides up to five SSIDs to separate and prioritize devices for various business usages and network alternatives. Network segments can be made for employees, guest portals, guest networks, scheduled networks, IoT networks and VPN networks.

Scenario explorer

The scenario explorer can guide network novices through the network setup process. Just click on a scenario that suits your business the most, and it will customize your router’s settings to complete the process in just a few steps.

Create your style

Guest portals can be tailored to meet your business needs, with custom portal types, branding and visual templates to fit particular business styles and to engage with customers in different ways.

Manage all devices at once

ExpertWiFi series lets business owners with multiple offices or workplaces connect all network devices under one administrator account. In addition, they can easily manage various network devices in the ASUS ExpertWiFi mobile app anywhere, anytime.

Extendable and scalable

ExpertWiFi networking products are prepared to scale to the customer’s needs, whether it’s a small business or a medium-sized office. With support for up to 12 node connections, companies can significantly expand their network size by adding more ExpertWiFi devices. Additionally, the EBR63 can support up to 100 active devices.

Control your business network all in one app

With the ASUS ExpertWiFi app, you can set up and manage your business network easily and conveniently.

Commercial-grade network security

Site-to-site VPN

Site-to-site VPNs are useful for companies that prioritize private, protected traffic. They are particularly helpful for organizations that have multiple locations spread out over great distances, such as chain stores and overseas branch offices. Using a site-to-site VPN can quickly help you build up your private network to connect all these places and to share information or resources between intranets from different locations.

Protect your businesses

ASUS AiProtection Pro leverages powerful cybersecurity solutions and cloud data centers from Trend Micro ™ to shield your business and all connected devices from cyber threats — with no subscription fee!

One-tap security scan

Check your security level with one tap, instead of fiddling with complicated settings.

Multi-functional hardware

Adaptable to any space

The ExpertWiFi EBR63 comes with a built-in bracket and wall mount holes that can be adjusted to fit into almost any location for space-saving and more flexibility. The bracket also doubles as a cable organizer, making it easy to keep your workspace clean and organized.

Versatile connectivity

ASUS ExpertWiFi EBR63 features two USB ports, enabling easy connection of business devices like printers and POS machines for seamless resource sharing. Additionally, the USB ports can serve as a backup internet provider with your mobile hotspot, by just plugging it into your smartphone, ensuring an always-on business network.

Specifications

Model Name

• EBR63

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Product Segment

• AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) : up to 1734 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps

Antenna

• 4 External Antenna

Transmit / Receive

• 2.4GHz 2x2
• 5GHz 2x2

Processor

• 1.7GHz quad-core processor

Memory

• 256MB FLASH 512MB RAM

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth

Operating Frequency

• 2.4 GHz
• 5 GHz

Operating Mode

• Wireless Router Mode
• AiMesh Node Mode
• Access Point Mode

I/O Ports

• RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, USB2.0

Buttons

• WPS Button, Reset Button, Power Switch

LED Indicator

• POWER, WAN, LAN, 5G, 2.4G

Power Supply

• AC Input : 110V~240V(50~60Hz) DC Output : 12V with max. 2A current

Mounting

• Wall Mount

Package Content

• .ExpertWiFi EBR63 .RJ45 Ethernet Cable .Power Adapter .Quick Start Guide .Warranty Card

Product Weight (g)

• 436g

Product Dimentions

• 225*127*146mm

AiMesh

• AiMesh
• • Primary AiMesh Router
• • AiMesh Node

Device Access Control

• "Allow you to block access to unwanted websites and apps."
• Web & Apps Filters
• Time Scheduling
• Safe Browsing
• Customized Internet Schedule
• • Maximum Device Access Control Profile :12
• • Maximum Device Access Control Content Filter Rule :12

Dashboard

• Dashboard

Self-Defined Network

• "You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
• Self-Defined Network Type
• • Employee
• • Guest Portal
• • Guest Network
• • Scheduled Network
• • IoT Network
• • VPN Network
• • Maximum Self-Defined Network Rule :16
• Multiple Network
• VLAN
• Captive Portal for Free WiFi
• VPN WiFi
• WiFi Scheduling: One Time Access
• WiFi Scheduling: Weekly Schedule
• WiFi share: QR code, PDF file
• Bandwidth Limiter
• AP isolate
• DNS Server Connection

Security

• AiProtection
• VPN
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Firewall

            • Maximum Firewall Keyword Filter :64

            • Maximum Firewall Network Service Filter :32

            • Maximum Firewall URL Filter : 64

AiProtection

• AiProtection Pro
• • Router Security Assessment
• • Malicious Site Blocking
• • Two-Way IPS
• • Infected Device Prevention and Blocking

VPN

• VPN Client L2PT
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion
• Support Surfshark

Traffic Control

• Adaptive QoS

            • Bandwidth Monitor

            • Bandwidth Limiter

            • Real-time Traffic Monitor

            • Wired Traffic Monitor

            • Wireless Traffic Monitor

            Traffic Analyzer

            • Website History

WAN

            • PPPoE

            • PPTP

            • L2TP

            • IPSec

            Dual WAN

            3G / 4G LTE Dongle

            4G / 5G Auto Mobile Tethering

            Port Forwarding

            Port Triggering

            DMZ

            DDNS

            NAT Passthrough

            • PPTP Pass-Through

            • L2TP Pass-Through

            • IPSec Pass-Through

LAN

• DHCP Server
• IGMP Snooping
• IPTV
• VLAN

Wireless

• MU-MIMO
• UTF-8 SSID
• WiFi MAC Address Filter

                • Maximum MAC Filters : 64

• Wireless Scheduler

USB application

• 4G / 5G Auto Mobile Tethering
• Media Server
• Samba Server
• FTP Server
• Shared Folder Privileges

User Interface

• WEB: ASUSWRT
• APP: ASUS ExpertWiFi APP

Administration

• Configuration Backup and Restore
• Diagnosis Tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
