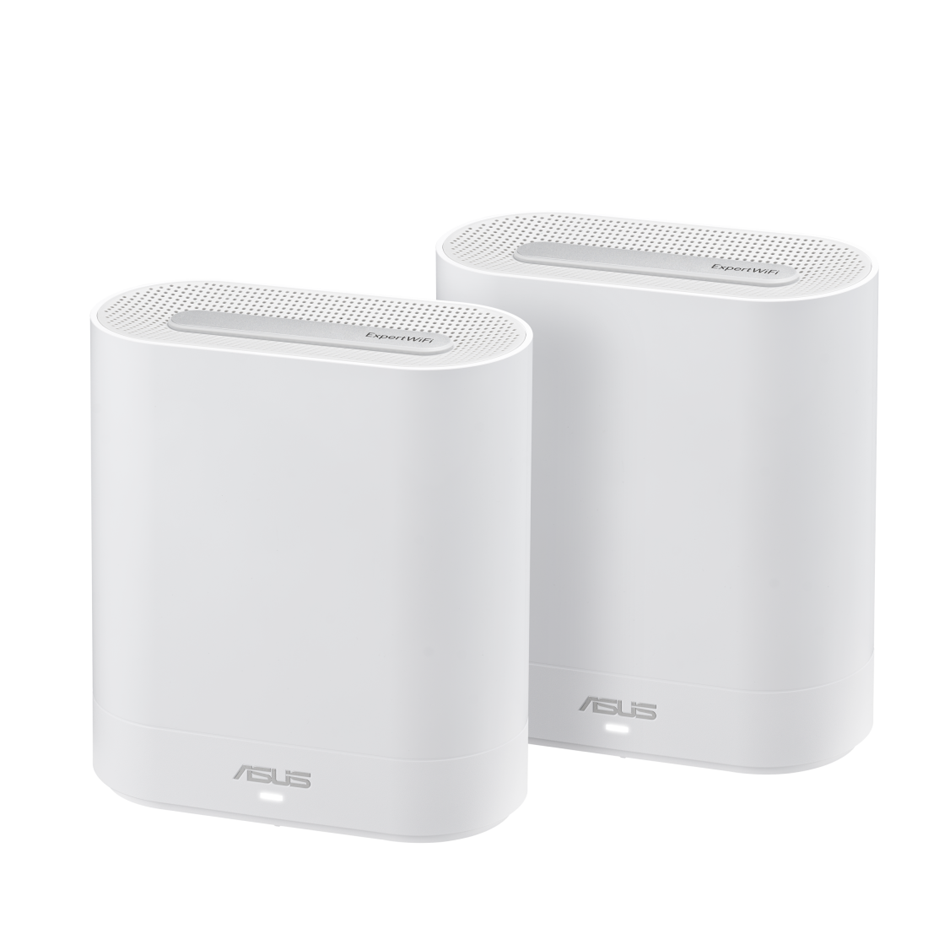

ASUS EXPERTWIFI EBM68 AX7800 Tri-Band WiFi 6 Mesh WiFi System 2 Pack - White

ASUS EXPERTWIFI EBM68 - AX7800 Tri-Band WiFi 6 Mesh WiFi System - White - 2 Pack

ASUS ExpertWiFi EBM68 Business Mesh System

Your Business WiFi Expert Within Reach

The ASUS ExpertWiFi EBM68 provides a fast, secure, and scalable network with rich features tailored for small-to-midsized businesses. Whether used independently or extended with other ASUS ExpertWiFi solutions, the ExpertWiFi EBM68 can easily adapt to your business network needs.

Speed up your business

The fastest business mesh routers on the market for downloading and smooth video calls.

Up to 7,800 Mbps

Support 160 MHzChannels

Connect your business to the max

4X greater network capacity, which can lower latency when demand is high

Support WiFi 6 802.11ax

A Tri-Band Mesh System

Stable business operation

ExpertWiFi supports virtual local area network (VLAN) management. VLAN management enables an easy, fast and flexible way to segment the network wired and wirelessly. You can dedicate an Ethernet port that provides additional security for your business.

Extendable and scalable

ExpertWiFi networking products are prepared to scale to the customer’s needs, whether it’s a small business or a large factory. With support for up to 12 node connections, companies can significantly expand their network size by adding more ExpertWiFi devices. Additionally, the EBM68 can support up to 100 active devices.

Control your business network all in one app

With the ASUS ExpertWiFi app, you can set up and manage your business network easily and conveniently.

Commercial-grade network security

Site-to-site VPNs are useful for companies that prioritize private, protected traffic. They are particularly helpful for organizations that have multiple locations spread out over great distances, such as chain stores and overseas branch offices. Using a site-to-site VPN can quickly help you build up your private network to connect all these places and to share information or resources between intranets from different locations.

PROTECT YOUR BUSINESS

ASUS AiProtection leverages powerful cybersecurity solutions and cloud data centers from Trend Micro ™ to shield your business and all connected devices from cyber threats — with no subscription fee!

ONE-TAP SECURITY SCAN

Check your security level with one tap, instead of fiddling with complicated settings.

Hardware

Easy wall-mounting

The ExpertWiFi EBM68 has built-in wall-mounting holes and a wall-mounting stand, making it easy to install right where it’s needed. By just flipping the stand, it can also act as a cable organizer.

ID Design

Design that makes signal better

The ExpertWiFi EBM68 features a quad-core CPU to deliver full performance potential for all businesses. Its vertical housing holds a specially designed antenna and circuit board that optimizes WiFi signal strength and provides better airflow, improving thermal performance for reliable operation.

• Special designed vents for increased airflow
• Double heatsink for maximized heat dissipation
• 45° antennas ensure strong WiFi in multi-story locations
• Vertical housing with space between antennas and circuit board for minimal WiFi signal interference

Specifications

Model Name

• EBM68

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Product Segment

• AX7800 ultimate AX performance : 574+2402+4804Mbps

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) (1024QAM): up to 4333Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz-1) : up to 2402Mbps
• WiFi 6 (802.11ax) (5GHz-2) : up to 4804Mbps

Antenna

• Internal antenna x 6

Transmit / Receive

• 2.4GHz 2x2
• 5GHz-1 2x2
• 5GHz-2 4x4

Processor

• 1.7 GHz quad-core processor

Memory

• 256 MB Flash 1 GB RAM

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency

• 2.4 GHz
• 5 GHz-1
• 5 GHz-2

Operating Mode

• Wireless Router Mode
• AiMesh Node Mode
• Access Point Mode

I/O Ports

• RJ45 for 2.5G BaseT for WAN x 1 RJ45 for Gigabits BaseT for LAN x 3 USB 3.2 Gen 1 x 1

Buttons

• WPS Button Reset Button Power Switch

LED Indicator

• Power x 1

Power Supply

• AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 3 A current

Mounting

• Wall Mount

Package Content

• ExpertWiFi EBM68 RJ-45 cable Power adapter Warranty card Quick start guide Wall-mount kit

Product Weight (g)

• 808g

Product Dimentions

• 167x77x186 mm

Remark

• Content and color may vary in different regions and packages.

AiMesh

• AiMesh
• • Primary AiMesh Router
• • AiMesh Node

Device Access Control

• "Allow you to block access to unwanted websites and apps."
  ------------------------------------------------------

• Web & Apps Filters
• Time Scheduling
• Reward
• Safe Browsing
• Customized Internet Schedule
• • Maximum Device Access Control Profile :12
• • Maximum Device Access Control Content Filter Rule :12

Dashboard

• Dashboard

Self-Defined Network

• "You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
• ------------------------------------------------------------------------
• Self-Defined Network Type
• • Employee
• • Guest Portal
• • Guest Network
• • Scheduled Network
• • IoT Network
• • VPN Network
• • Maximum Self-Defined Network Rule :16
• VLAN
• Captive Portal for Free WiFi
• VPN WiFi
• WiFi Scheduling: One Time Access
• WiFi Scheduling: Weekly Schedule
• WiFi share: QR code, PDF file
• Bandwidth Limiter
• AP isolate
• DNS Server Connection

Security

• AiProtection
• VPN
• WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Firewall

            • Maximum Firewall Keyword Filter :64

            • Maximum Firewall Network Service Filter :32

            • Maximum Firewall URL Filter : 64

AiProtection

            AiProtection Pro

            • Router Security Assessment

            • Malicious Site Blocking

            • Two-Way IPS

            • Infected Device Prevention and Blocking

VPN

• VPN Client L2PT
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion
• Support Surfshark

Traffic Control

• Adaptive QoS

                • Bandwidth Monitor

                • Bandwidth Limiter

• Traffic Monitor

                • Real-time Traffic Monitor

                • Wired Traffic Monitor

                • Wireless Traffic Monitor

• Traffic Analyzer

                • Website History

WAN

• Internet Connection Type
• • PPPoE
• • PPTP
• • L2TP
• • Automatic IP
• • Static IP
• • IPSec
• Dual WAN
• 3G / 4G LTE Dongle
• 4G / 5G Auto Mobile Tethering
• Port Forwarding
• Port Triggering
• DMZ
• DDNS
• NAT Passthrough
• • PPTP Pass-Through
• • L2TP Pass-Through
• • IPSec Pass-Through

LAN

• DHCP Server
• IGMP Snooping
• IPTV
• LAN Link Aggregation
• VLAN

Wireless

• UTF-8 SSID
• WiFi MAC Address Filter

                • Maximum MAC Filters : 64

• Wireless Scheduler

USB application

• 4G / 5G Auto Mobile Tethering
• Media Server
• Samba Server
• FTP Server
• Shared Folder Privileges

User Interface

• WEB: ASUSWRT
• APP: ASUS ExpertWiFi APP

Management

• Multiple Site Management

Administration

• Configuration Backup and Restore
• Diagnosis Tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
