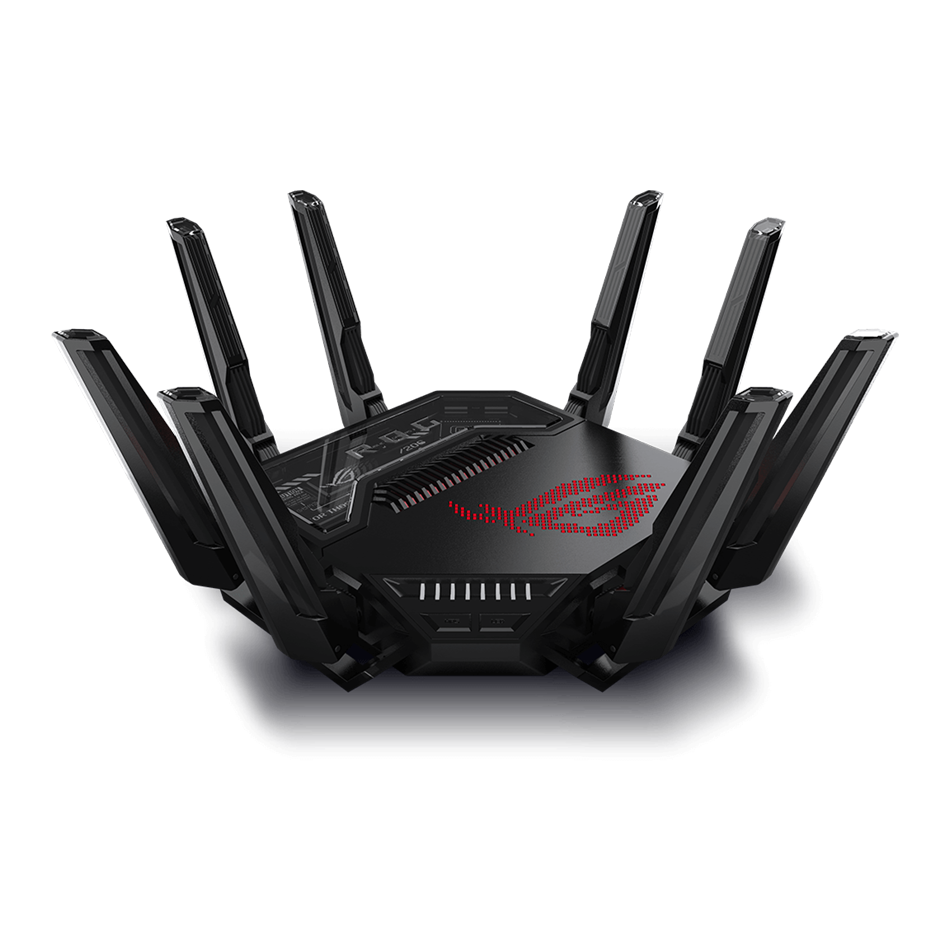

ASUS ROG Rapture GT-BE98 Quad-band WiFi 7 (802.11be) Gaming Router - Black
Brand
Acer![Acer Acer](https://q8quadra.com/media/magiccart/shopbrand/brand/a/c/acer.png)
- Beyond-fast WiFi 7 (802.11be) with new 320MHz channels in the 6 GHz band and 4096-QAM significantly increases network capacity and throughput, with speeds of up to 25 Gbps
- Multi-link Operation links to multiple bands at the same time to ensure stable internet connections and efficient data transfers
- Cutting-edge external dual-feeding antennas boost coverage by providing high efficiency and significantly enhanced signal strength
- Maximized wired connectivity and flexibility with dual 10G ports and quad 2.5G ports, paving the way for most bandwidth-intensive games
- Subscription-free network securitywith commercial-grade AiProtection Pro powered by Trend Micro™, plus a one-tap security scan and Safe Browsing
- Comprehensive VPN features including advanced site-to-site VPN and the Instant Guard mobile app for secure connection over public WiFi
- AiMesh extendable routers enable whole home seamless roaming with rich, advanced features
Categories:
ASUS ROG RAPTURE GT-BE98 - Quad-Band WiFi 7 (802.11be) Gaming Router - Black
ROG Rapture GT-BE98
Game Beyond Speeds
The Rapture series continues to push the boundaries of what is possible for gaming and networking. The ROG Rapture GT-BE98 is a quad-band WiFi 7 gaming router tailored for next-gen computing, with speeds of up to 25 Gbps and dual 10Gbps ports.
Leap Forward with WiFi 7
WiFi 7 (IEEE 802.11be) packs all the benefits of WiFi 6/6E and expands several existing WiFi standards to a whole new level, such as 320 MHz bandwidth and 4K-QAM. And it introduces some revolutionary features like Multi-Link Operation. These combined technologies provide beyond fast speeds, extremely low latency and enhanced reliability. You can enjoy unparalleled network experiences in any online battlefield.
Forged for Performance
ROG Rapture GT-BE98 is equipped with cutting-edge technology and innovative designs, ensuring that you can enjoy the ultimate performance without compromising.
The Next-gen Powerhouse
The ROG Rapture GT-BE98 is powered by a powerful quad-core 2.6 GHz CPU and WiFi chipset, giving it the performance to handle even the most demanding scenarios, such as 10 Gbps WiFi connections, next-gen cloud-based computing, cloud gaming and cloud AI.
Eliminate WiFi Dead Zones
The ROG Rapture GT-BE98 is equipped with eight sturdy external antennas and sixteen powerful internal dipole antenna elements, while each radio frequency chain has an independent high-power amplifier. Four antennas feature a dual-feed design using copper tubes that provide high efficiency and significantly enhanced signal strength. This optimized antenna array ensures better signal isolation for simultaneous transmission and reception at different frequencies in adjacent bands.
Look Cool, Game Cool
Heat can kill performance. The ROG Rapture GT-BE98 features an aluminum plate on the top that is 30% thicker*, an abrasive-blasted nanocarbon layer and a two-centimeter stand. Coupled with a specially designed vent and heat spreader, this router improves airflow with 18% better heat dissipation.
Maximized Connectivity and Flexibility
Dual 10G Ports
Unleash the power of 10 Gbps network for gaming, streaming and other speed intensive applications. LAN aggregation support further boosts your wired network to up to 20 Gbps for more demanded devices such as workstation PC or NAS server.
Quad 2.5G Ports
Quad 2.5G ports ensure maximized wired connectivity and flexibility, paving the way for your most bandwidth-intensive games to leverage ultrafast internet connections.
Dedicated Gaming Port
The 10 Gbps LAN is configured as dedicated gaming port, prioritizing any connected gaming devices.
Versatile WAN options
Choose the WAN perfect for you with triple WAN ports design, including 10 Gbps WAN, 2.5 Gbps WAN or USB WAN. Plus, plug-and-play 4G/ 5G mobile tethering for always-on Internet.
Supercharging All Games
Triple-level Game Acceleration
Say goodbye to high ping. The GT-BE98 boosts your PC gaming traffic every step of the way, from your PC gaming port all the way to the game server.
Mobile Game Mode
Prioritize the network traffic of your favorite mobile game, minimizing lag and latency with just a tap on the ASUS Router mobile app.
Easy Game Console Port Forwarding
Using OpenNAT on GT-BE98 couldn’t be easier. Enjoy faster connection speed, shorter lobby wait times and smoother gameplay with legacy game consoles or popular gaming handhelds.
Harness the Connected World
AiProtection Pro
Ever-evolving online threats such as malicious website phishing, webcam hacking or ransomware can result in a loss of privacy and finances. The ROG Rapture GT-BE98 includes commercial-grade AiProtection Pro powered by Trend Micro ™ to shield your network from cyber threats.
Specifications
Model Name
- GT-BE98
Network Standard
- WiFi 6 (802.11ax)
- WiFi 7 (802.11be)
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- IEEE 802.11ac
- IPv4
- IPv6
Product Segment
- BE25000 ultimate BE performance : 1376+5764+5764+11529 Mbps
WiFi Data Rate
- 2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
- 5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
- 5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
- 6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp
Antenna
- External antenna x 8
Transmit / Receive
- 2.4GHz 4x4
- 5GHz-1 4x4
- 5GHz-2 4x4
- 6GHz 4x4
Processor
- 2.6GHz quad-core processor
Memory
- 256 MB Flash and 2 GB RAM
Boosts Speed
- OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth
Operating Frequency
- 2.4 GHz / 5 GHz / 6 GHz
Operating Mode
- Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
I/O Ports
- 1 x 10Gbps for WAN/LAN 1 x 2.5Gbps for WAN/LAN 1 x 10Gbps for LAN 3 x 2.5Gbps for LAN 1 x RJ45 10/100/1000Mbps for LAN 1 x USB 3.2 Gen1 1 x USB 2.0
Buttons
- WPS Button, Reset Button, Power Switch, LED control Button
LED Indicator
- WAN(Internet) x1 10G LAN x1 1G/2.5G LAN x1 6GHz x1 5GHz-1 x 1 5GHz-2 x 1 2.4GHz x1 Power x1
Power Supply
- AC Input : 110V~240V(50~60Hz) DC Output : 19.5 V with max. 3.33 A current
Package Content
- GT-BE98 quad-band gaming router RJ-45 cable Power adapter Quick Start Guide Warranty card
Product Weight (g)
- 2000 g
Product Dimensions
- 350.41 x 350.41 x 220.6 mm
AiMesh
- AiMesh
• Primary AiMesh Router
• AiMesh Node
Game
- Game Boost / Acceleration
- WTFast
- ROG_First
- OpenNAT (Game Profile)
- Gaming Port
Parental Control
- "Allow you to block access to unwanted websites and apps."
- Parental Control Customized Internet Schedule
• Maximum Parental Control profile : 64
• Maximum Parental Control content filter rule : 64
Guest Network
- "The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
- Guest Network Connection time limit
- Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal
Security
- WiFi Encryption : WPA/WPA2/WPA3 Personal WPA/WPA2/WPA3 Enterprise Open System & OWE
- WPS
- Let's Encrypt
- DNS-over-TLS
- SSH
- Security Scan
- Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
- AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN
- Instant Guard
- VPN Client L2TP
- VPN Client Open VPN
- VPN Client PPTP
- VPN Client WireGuard
- VPN Server IPSec
- VPN Server Open VPN
- VPN Server PPTP
- VPN Server WireGuard
- VPN Fusion
Traffic Control
- Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
WAN
- Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP
- Dual WAN
- 3G / 4G LTE Dongle
- 4G / 5G Auto Mobile Tethering
- Port Forwarding
• Maximum Port Forwarding Rule : 64
- Port Triggering
• Maximum Port Triggering Rule : 32
- DMZ
- DDNS
- NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
- DHCP Server
- IPTV
- LAN Link Aggregation
- Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 128
- Wake on LAN (WOL)
Wireless
- MU-MIMO
- UTF-8 SSID
- WiFi MAC Address Filter
• Maximum MAC Filters : 64
- Wireless Scheduler
- Airtime Fairness
- RADIUS Client
- Universal Beamforming
- Explicit Beamforming
USB application
- 4G / 5G Auto Mobile Tethering
- File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
- Safely Remove Disk
- AiCloud
- Download Master
- AiDisk
- Media Server
- Time Machine
- Samba Server
- FTP Server
- Shared Folder Privileges
User Interface
- Operating system : ASUSWRT
Administration
- Configuration Backup and Restore
- Diagnosis Tools
- Feedback System
- System Log
- New Device Connect Notification
- Login Captcha
- Connection Diagnosis
- Auto Firmware Update
