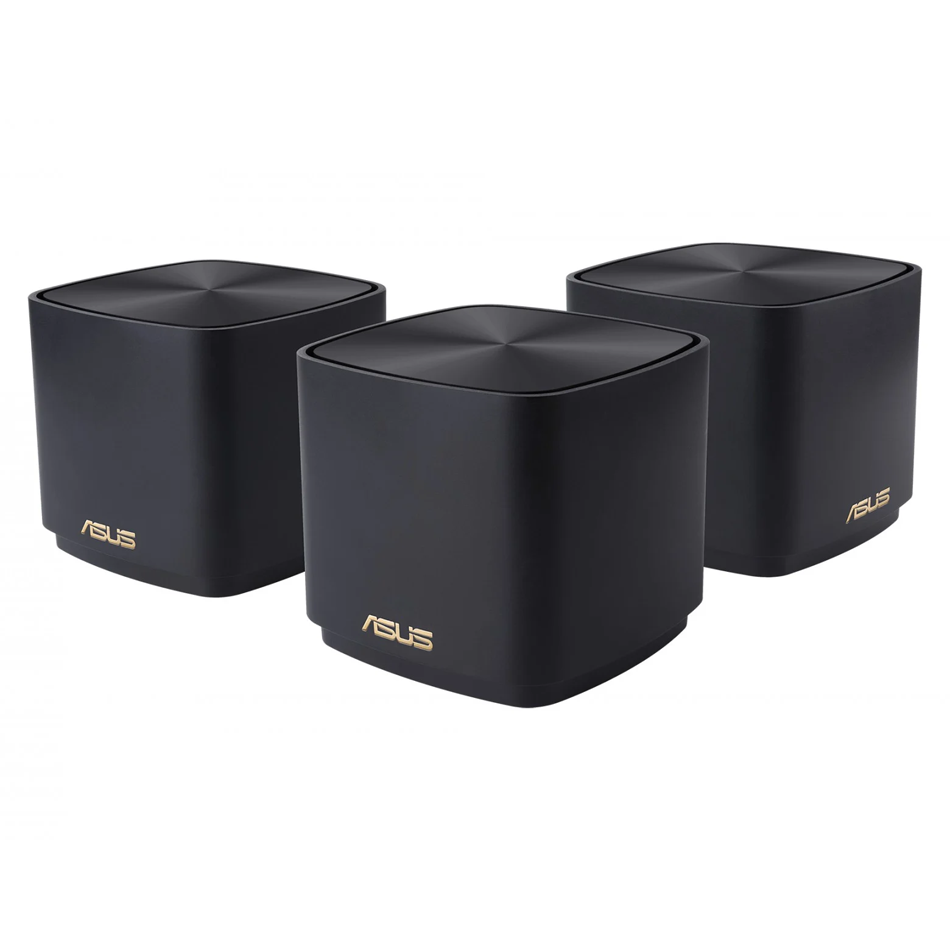

ASUS ZENWIFI XD4 PLUS - AX1800 Whole-Home Mesh WiFi 6 System 3 Pack - Black

ASUS ZENWIFI XD4 PLUS - AX1800 Whole-Home Mesh WiFi 6 System - Black - 3 Pack

Whole-home Coverage

The ZenWiFi AX Mini system consists of one ASUS AX1800 WiFi 6 router and two extending node, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!

WiFi 6

ZenWiFi AX Mini puts your WiFi into top gear! With a total bandwidth of up to of 1800 Mbps, it's up to 1.4X faster*

than WiFi 5 routers **.

* Compatible WiFi 6 device required.

** The data compares speed of 2X2 11ax on 5GHz 80 MHz bandwidth with 1024QAM modulation to speed of 2x2 11ac on 5GHz 80MHz with 256QAM modulation.

Easier-than-ever Setup

3-step setup with the ASUS Router app:

1. Turn on ZenWiFi AX Mini

2. Create a WiFi network name and an admin account

3. Wait for 3 minutes, and you're done!

What makes ZenWiFi AX Mini setup so easy?

1. One-time setup, with auto synchronization for all the hubs in each package

2. At a glance: You must start setup using the router, which is the unit with a removable clear plastic strip wrapped around it.

Smart Looks for Smart Homes

ZenWiFi AX Mini works perfectly with smart-home services — including Alexa skills and IFTTT — and is available in charcoal or white to suit your décor.

Make the Internet a Safer Place for Everyone

AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.

No Subscription Fee

Some routers only offer 3 years of protection, ASUS AiProtection has you covered for the life of your product.

24/7 Auto Update

ZenWiFi keeps your network running securely with automatic firmware updates and is always in sync with Trend Micro's cloud database, so you can always enjoy the best Internet experience.

Block Access to Malicious Websites

AiProtection uses Trend Micro's official database to identify and block known malicious sites, preventing infection even before you click.

Infection Detection and Blocking

Even if an already-infected device is connected to ZenWiFi, AiProtection prevents any personal data on the device from being compromised.

Parental Controls

URL filter and scheduling allow you to protect your family from inappropriate content and unhealthy Internet usage behavior.

Flexible Network Naming

Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!

More Stable WiFi with Wired Connections between ZenWiFi Hubs

If you have Ethernet ports in your walls, you can set ZenWiFi AX Mini to use Ethernet backhaul, reserving all WiFi bands for your wireless devices for even more stable and reliable networking.

AiMesh Technology

Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.

Specifications

Model Name

• XD4 PLUS (B-3-PK)

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Product Segment

• AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps

WiFi Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 4 (802.11n) TurboQAM : up to 867 Mbps
• WiFi 5 (802.11ac) : up to 867 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps

Antenna

• Internal dual-band antenna x 2

Transmit / Receive

• MIMO technology
• 2.4GHz 2x2
• 5GHz 2x2

Memory

• 128 MB Flash, 256 MB RAM

Boosts Speed

• MIMO technology

Operating Frequency

• 2.4 G Hz / 5 GHz

I/O Ports

• RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1

Buttons

• WPS Button, Reset Button

LED Indicator

• Power x 1

Power Supply

• "AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 1.5 A current"

Package Content

• XD4 Plus ‧RJ45 Ethernet cable ‧Power adapter ‧Quick start guide ‧Warranty card ‧Screw pack

Product Weight (g)

• 307 g

Product Dimensions

• 90 x 90 x 85 mm

AiMesh

• AiMesh
• • Primary AiMesh Router
• • AiMesh Node

Parental Control

• "Allow you to block access to unwanted websites and apps."
  Customized Internet Schedule

Router APP

• APP: ASUS Router APP

Guest Network

• Support Guest Network
• • Maximum Guest Network Rule : 6
• Guest Network Connection Time Limit

Security

• WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
• WPS
• Let's Encrypt
• SSH
• Firewall

AiProtection

• AiProtection Classic
• • Malicious Site Blocking
• • Infected Device Prevention and Blocking

VPN

• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP

Traffic Control

                    • Bandwidth Monitor

                    • Bandwidth Limiter

                    Traditional QoS

                    • Maximum Traditional QoS Rule : 32

                    Traffic Monitor

                    • Real-time Traffic Monitor

                    • Wired Traffic Monitor

                    • Wireless Traffic Monitor

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• 4G / 5G Auto Mobile Tethering
• Port Forwarding
• Port Triggering
• DMZ
• DDNS

LAN

• DHCP Server
• IGMP Snooping
• IPTV
• Manually Assign IP Address

                • Maximum Manually Assign IP Address Rule : 64

• Wake on LAN (WOL)

Wireless

• UTF-8 SSID

USB application

• 4G / 5G Auto Mobile Tethering

Administration

• Configuration Backup and Restore
• Diagnosis Tools
• Feedback System
• System Log
