ASUS RT-AX88U Pro - AX6000 Dual Band WiFi 6 Router - Black

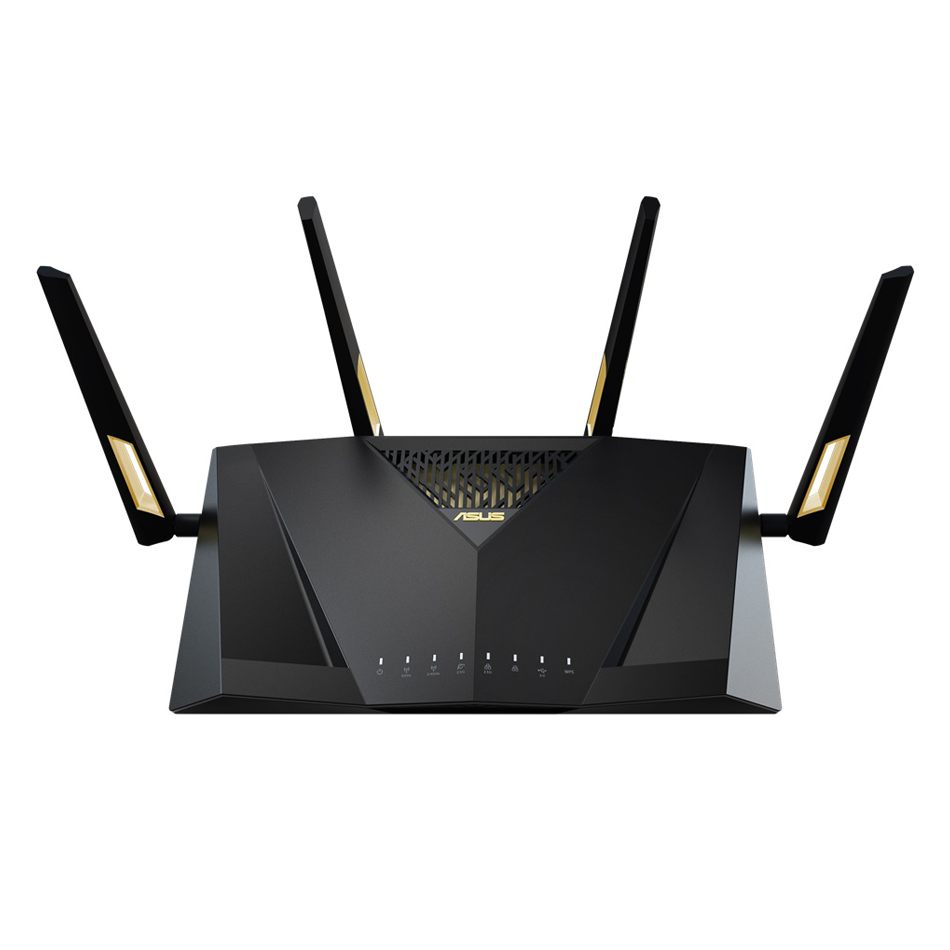

ASUS RT-AX88U Pro - AX6000 Dual Band WiFi 6 Router

AX6000 Dual Band WiFi 6 Router, Dual 2.5G Port, 2.0 GHz Quad-core CPU, AiProtection Pro, WPA3, Parental Control, Mesh WiFi support, Adaptive QoS, Port Forwarding, WAN aggregation, free network security and AiMesh support

The New Era of Home WiFi

The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current WiFi standard. The latest WiFi 6 (802.11ax) provides future-proof technologies, higher network efficiency, faster Wi-Fi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users.

Warp-speed WiFi

RT-AX88U Pro is a 4x4 dual-band WiFi router that provides 160MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 6000Mbps — 1148Mbps on the 2.4GHz band and 4804Mbps on the 5GHz band — RT-AX88U Pro is 2.3X faster than 802.11ac 4x4 dual-band routers.

Beyond Performance

RT-AX88U Pro is powered by a 2.0 GHz quad-core 64-bit CPU, giving it the performance to handle even the most demanding gaming network. It delivers maximum network throughput by 18%* for lightning-fast, accelerating data transfers and optimizing your gaming experience.

Flexible network ports functions

RT-AX88U Pro has two dual-function WAN/LAN 2.5 Gbps Ethernet ports that support link aggregation and load balancing, giving you the flexibility to give massive bandwidth to connected devices or take advantage of ultra-high-speed internet connections.

Give your Online Gaming a Double Boost

RT-AX88U Pro's Adaptive QoS prioritizes game packets for smoother online play. It also has built-in wtfast® to seek out and secure the shortest possible path between your gaming device and the game server, minimizing game ping and lag.

Commercial-grade Security for your Home Network

RT-AX88U Pro has lifetime free AiProtection Pro, powered by Trend Micro™ with automatic, regularly updated security signatures to protect your devices and personal data from internet threats. This strong security offers advanced parental controls, including the ability to block specific websites and mobile app types.

Powerful Whole-home Wi-Fi System.

The Way You Want.

In most cases, your RT-AX88U Pro can deliver smooth, reliable Wi-Fi to every part of your home. But Wi-Fi coverage can be affected by many factors — room layout, construction materials, and even furnishings. ASUS AiMesh is an innovative new router feature that fixes these problems: it creates a whole-home Wi-Fi network using multiple ASUS routers. AiMesh is powerful, flexible and you can use a mix of ASUS router models — protecting your investment! AiMesh gives you time-saving central control, and seamless roaming capability. AiMesh is Wi-Fi you can rely on — for all your devices, all the time!

Powerful Whloe-home Wi-Fi System.​

• Turn your ASUS routers into whole-home Wi-Fi system with a simple firmware update
• Mix and match preferred models from selected ASUS routers
• Create a Wi-Fi network with either a single SSID or multiple SSIDs
• All router features works across the entire Wi-Fi system

A Safer Browsing Experience

The internet can contain inappropriate content, intrusive ads or other dangers and safety risks. ASUS Safe Browsing helps block undesirable content in one tap -- no extra apps required. Its lightweight DNS-based filtering* won't affect router performance. It can even filter explicit content from search engine results to protect your kids online.

Enhanced Security Anywhere

Complete Security for Your Home Network

Alongside the latest WPA3 security protocol, the ASUS RT-AX88U Pro also features AiProtection Pro powered by Trend Micro™, with automatic, regularly updated security signatures to protect your devices and personal data from internet threats.

Specifications

Network Standard

• WiFi 6 (802.11ax)

Product Segment

• AX6000 ultimate AX performance : 1148+4804 Mbps

WiFi Data Rate

• WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna

• External antenna x 4

Transmit / Receive

• 2.4GHz 4x4
• 5GHz 4x4

Processor

• 2.0 GHz quad-core processor

Memory

• 256 MB Flash, 1 GB RAM

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access), Beamforming: standard-based and universal, 1024-QAM high data rate, 20/40/80/160 MHz bandwidth,

Operating Frequency

• 2.4G Hz / 5 GHz

Operating Mode

• Accesspoint, AiMeshnode, Mediabridge, Repeater, Router

I/O Ports

• RJ45 for 2.5 Gigabits BaseT for WAN x 1, RJ45 for 2.5 Gigabits BaseT for LAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1

Buttons

• WPS Button, Reset Button, Power Button

LED Indicator

• Power x 1 2.4GHz x 1 5GHz x 1 2.5G WAN x 1 2.5G LAN x 1 LAN x 1 USB x 1 WPS x 1

Power Supply

• AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 2.37 A current or 19.5 V with max. 2.31 A current

Product Weight (g)

• 1010 g

Product Dimensions

• 300 * 188 * 60.5 mm

AiMesh

• AiMesh
• • Primary AiMesh Router
• • AiMesh Node

Game

• Game Boost / Acceleration
• WTFast

Parental Control

• "Allow you to block access to unwanted websites and apps."
• Safe Browsing
• Customized Internet Schedule

Guest Network

• "The Guest Network provides Internet connection for guests but restricts access to your local network."

                        • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3

• Guest Network Connection Time Limit
• Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal

Security

• AiProtection
• Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan
• Firewall

                • Maximum Firewall Keyword Filter : 64

                • Maximum Firewall Network Service Filter : 32

                • Maximum Firewall URL Filter : 64

AiProtection

                • Router Security Assessment

                • Malicious Site Blocking

                • Two-Way IPS

                • Infected Device Prevention and Blocking

VPN

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

Traffic Control

• Adaptive QoS

                    • Bandwidth Monitor

                    • Bandwidth Limiter

• -- Maximum Bandwidth Limiter Rule : 32
• Traditional QoS
• -- Maximum Traditional QoS Rule : 32
• Traffic Monitor

                    • Real-time Traffic Monitor

                    • Wired Traffic Monitor

                    • Wireless Traffic Monitor

• Traffic Analyzer

                    • Traffic Analysis Period : Daily, Weekly, Monthly

                    • Website History

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN
• WAN Aggregation
• 3G / 4G LTE dongle
• Port forwarding

                        • Maximum Port Forwarding Rule : 64

• Port triggering

                        • Maximum Port Triggering Rule : 32

• DMZ
• DDNS
• NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

• DHCP Server
• IGMP Snooping
• IPTV
• LAN Link Aggregation
• Manually Assign IP Address

                    • Maximum Manually Assign IP Address Rule : 64

• Wake on LAN (WOL)

Wireless

• MU-MIMO
• UTF-8 SSID
• WiFi MAC Address Filter

                    • Maximum MAC Filters : 64

• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming

USB application

• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
• Safely Remove Disk
• AiCloud
• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder Privileges

Administration

• Configuration Backup and Restore
• Diagnosis tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
