ASUS MB PRIME X670-P WIFI
Brand
Acer![Acer Acer](https://q8quadra.com/media/magiccart/shopbrand/brand/a/c/acer.png)
- ATX Form Factor
- AMD X670 Chipset
- Socket AM5
- 4 x Dual-Channel DDR5-6400 (OC)
- 3 x M.2 Slot | 6 x SATA III
- Realtek 7.1 Surround Sound
- Realtek 2.5 Gb Ethernet
- Wi-Fi 6 (802.11ax) | Bluetooth 5.2
- ASUS Aura Sync RGB Lighting
Categories:

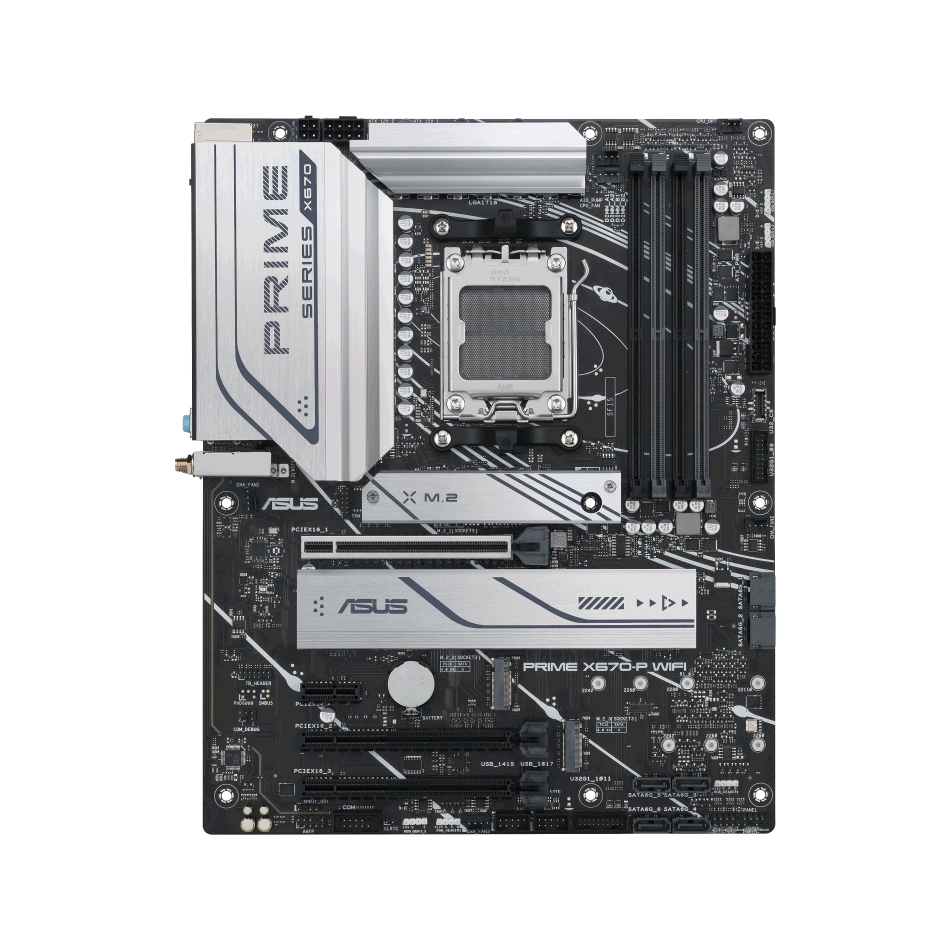

ASUS PRIME X670-P WIFI DDR5 AM5 ATX Motherboard
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME X670-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME X670 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
AI Cooling ll
AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings all to help you get your rig up and running in no time.
Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse.
Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.
COOLING
PRIME X670 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
An M.2 heatsink takes care of the M.2 slot, warding off throttling that can occur with M.2 storage during sustained transfers.
The PRIME X670-P WIFI motherboard The PRIME X670-P WIFI motherboard offers M.2 heatsinks. The PRIME X670-P WIFI motherboard offers VRM heatsinks. The PRIME X670-P WIFI motherboard offers passive chipset heatsink.
Heatsink with removable captive screws
Removable captive screws reduce risk of drops or loss during heatsink removal.
Passive Chipset Heatsink
An aluminum passive chipset heatsink ensures optimal cooling for more stable performance. The passive heatsink approach is more durable and longer-lasting, avoiding dust and dirt build-up problems often encountered by conventional active heatsinks with dedicated fan designs.
Cooler by Design
PRIME X670 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference four thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
AIO Pump Header
A dedicated PWM/DC header for self-contained water-cooling setups.
Smart Protection
A dedicated integrated circuit protects each fan header from overheating and overcurrent.
4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.
PERFORMANCE
The PRIME X670 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS X670 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of AMD processors. The PRIME X670-P WIFI is geared to cater to the demands of these high-core-count CPUs.
DDR5 Performance Enhancement
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME X670-P WIFI, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
Memory
For entry-level modules without EXPO memory support, we've got you covered. Click here to learn more about AEMP. arrow .
For those who want to fly past stock DDR5 speeds, the PRIME X670-P WIFI is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
ASUS OptiMem II
Revisions to the motherboards trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.
Benefits of ASUS OptiMem II:
- Improved memory stability and compatibility
- Allows lower memory latencies at equivalent voltages
- Improved memory frequency margin
Motherboards with OptiMem II technology were tested with Synopsys HSPICE simulation software
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
Audio Shielding
Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Dedicated Audio PCB Layers
Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
Premium Audio Capacitors
Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
Specifications
CPU
- AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors*
Chipset
- AMD X670 Chipset
Memory
- 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports AMD Extended Profiles for Overclocking (EXPO)
- OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics
- 1 x DisplayPort**
- 1 x HDMI® port***
* Graphics specifications may vary between CPU types.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots
- AMD Ryzen 7000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x16 mode)
- AMD X670 Chipset
- 2 x PCIe 4.0 x16 slots (support x4 mode)
- 1 x PCIe 3.0 x1 slot**
* Please check the PCIe bifurcation
** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.
Storage
- Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
- AMD Ryzen 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- AMD X670 Chipset
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 6 x SATA 6Gb/s ports**
* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.
Ethernet
- 1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
- Wi-Fi 6
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
- Bluetooth v5.2
USB
- Rear USB (Total 10 ports)
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 3 x USB 3.2 Gen 2 ports (3 x Type-A)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 9 ports)
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Premium audio capacitors
- - Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 3 x USB 3.2 Gen 2 ports (3 x Type-A)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI® port
- 1 x Wi-Fi Module
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x BIOS FlashBack button
- 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 3 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- Storage related
- 3 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 2 x Aura RGB headers
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1pin)
- 1 x 20-5 pin System Panel header
- 1 x Thunderbolt (USB4®) header
Special Features
- ASUS 5X PROTECTION III
- - DIGI+ VRM (- Digital power design with DrMOS)
- - ESD Guards
- - LANGuard
- - Overvoltage Protection
- - Safeslot Core+
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - M.2 Q-Latch
- - Q-DIMM
- - Q-LED Core
- - Q-Slot
- ASUS Thermal Solution
- - M.2 heatsink
- - VRM heatsink design
- ASUS EZ DIY
- - BIOS FlashBack button
- - BIOS FlashBack LED
- - ProCool
- Aura Sync
- - Aura RGB headers
- - Addressable Gen 2 headers
Software Features
- ASUS Exclusive Software
- Armoury Crate
- - Aura Creator
- - Aura Sync
- - Fan Xpert 4 with AI Cooling II
- - Power Saving
- AI Suite 3
- - TurboV EVO
- - DIGI+ VRM
- - PC Cleaner
- ASUS CPU-Z
- MyASUS
- Norton Anti-virus software (Free Trial version)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
Manageability
- WOL by PME, PXE
Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x ASUS Wi-Fi moving antennas
- 1 x I/O Shield
- 1 x Rubber Package for M.2
- 2 x Screw Packages for M.2 SSD
- Documentation
- 1 x User guide
Operating System
- Windows® 11, Windows® 10 64-bit
Form Factor
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
