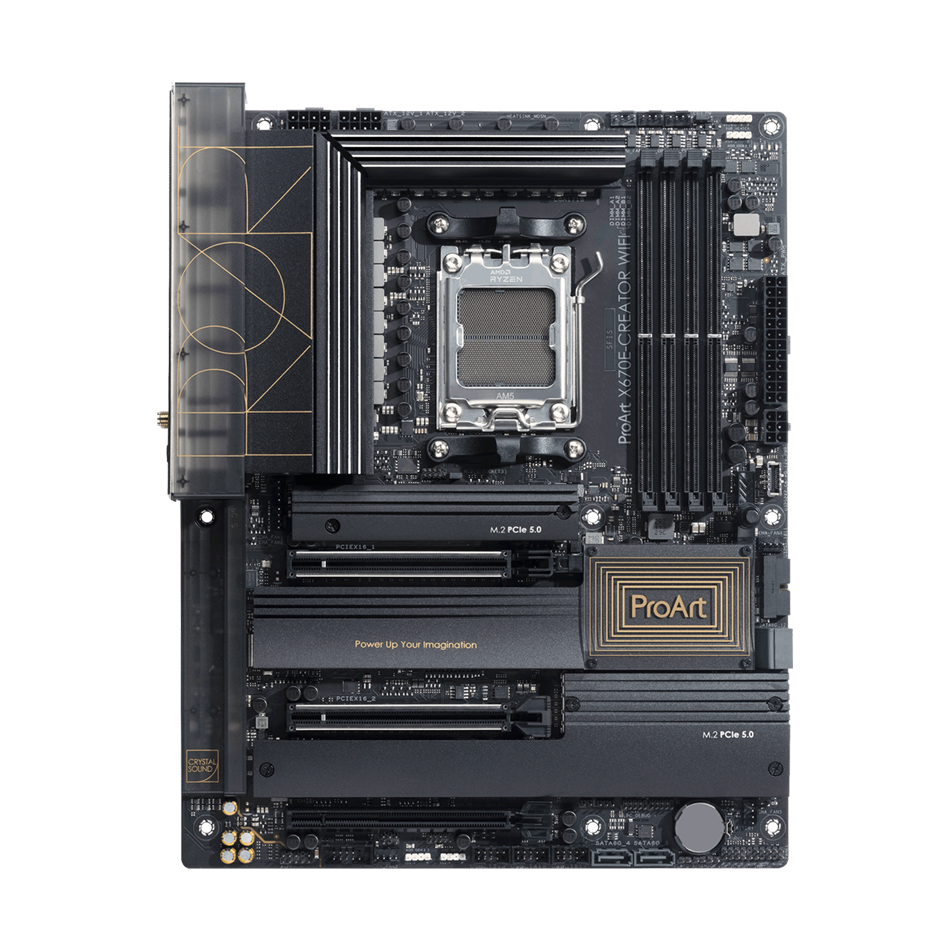

ASUS PRO ART X670E-CREATOR WIFI Motherboard - Black
Brand
Acer![Acer Acer](https://q8quadra.com/media/magiccart/shopbrand/brand/a/c/acer.png)
- ATX Form Factor
- AMD X670 Chipset
- Socket AM5
- 4 x Dual-Channel DDR5-6400 (OC)
- 4 x M.2 Slot | 4 x SATA III
- 10Gb Ethernet | Intel 2.5 Gb Ethernet
- Wi-Fi 6E (802.11ax) | Bluetooth 5.2
Categories:
ASUS PROART X670E-CREATOR WIFi AM5 ATX Motherboard - Black
The ProArt X670E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen 7000 Series processors with 16+2 team power stages, DDR5 and PCIe 5.0 and lightning-fast connectivity including USB4®, 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.
It manifests a professional, elegant and precise vision for content creators of all kinds with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
All you need for maximum productivity
Dual USB4® connectivity
Get immersed in your creations with two USB4® ports connect to all your content creation gadgets and enable up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort-in port at the back I/O and direct the video output via the USB4® port.
Ultrafast networking
WiFi 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.
10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.
PCIe 5.0 support
Fully embracing the new standard, the ProArt X670E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
Four onboard M.2 slots
The ProArt X670E-Creator WiFi features four onboard M.2 slots, two of which are PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.
PCIe 5.0 expansion slots
Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the Q-Release button.
Quick charging your USB devices
USB 3.2 Gen 2x2 Type-C® front-panel
connector with Quick Charge 4+
USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.
Robust power design
16+2 teamed power stages
Rated for 70 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the latest AMD Ryzen 7000 series processors.
AI Overclocking
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
Memory
The ProArt X670E-Creator WiFi enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you're dealing with high-speed or entry-level memory modules.
Self-adaptive fan tuning
AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
Everything you need to optimize workflow
Two-Way AI Noise Cancelation
As working from home becomes the new normal, clear online communication is more critical than ever. Two-Way AI Noise Cancelation is an audio utility that leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back so your calls and video conferences with partners and clients are crystal clear.
Customize your personal settings
ProArt Creator Hub is your personal portal to monitor your PC status, personalize settings or optimize your workflow. It features an intuitive overview dashboard, quickly switching fan profiles and makes short work of switching between different performance modes.
Security control and remote management
Advanced security management functions from ASUS Control Center Express protects the systems and confidential data in your creative studio.
Trusted stability
ProArt X670E-Creator WiFi is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.
THIS CHANGES EVERYTHING.
FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen 7000 Series processor and ProArt X670E-Creator WiFi to experience advanced performance. With up to 16 Zen4 cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen 7000 Series keeps you ahead of the game.
You'll also gain access to new features for creators with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO technology.
Specifications
CPU
- AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors*
Chipset
- AMD X670
Memory
- 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports AMD Extended Profiles for Overclocking (EXPOâ„¢)
- OptiMem II
- * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration.
- ** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.
Graphics
- 1 x HDMI® port**
- 2 x USB4® ports support USB Type-C® display outputs***
- * Graphics specifications may vary between CPU types.
- ** Supports 4K@60Hz as specified in HDMI 2.1.
- *** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
- **** Output at USB4_EC1 and USB4_EC2, each requires a USB-C® to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
- AMD Ryzen 7000 Series Desktop Processors*
- 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
- AMD X670 Chipset
- 1 x PCIe 4.0 x16 slot (supports x2 mode)**
- * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
- ** PCIEX16_3 shares bandwidth with M.2_3 slot. Please adjust in BIOS setting to enable PCIEX16_3.
- - To ensure compatibility of the device installed.
Storage
- Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
- AMD Ryzen 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- AMD X670 Chipset
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
- M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
- ** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 is in operation after adjusting in BIOS settings, M.2_3 slot will only run at PCIe x2 mode.
Ethernet
- 1 x Marvell® AQtion 10Gb Ethernet
- 1 x Intel® 2.5Gb Ethernet
- ASUS LANGuard
Wireless & Bluetooth
- Wi-Fi 6E
- 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5/6GHz frequency band*
- Bluetooth v5.2
- * WiFi 6E 6GHz regulatory may vary between countries.
- Wi-Fi 6E
- 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5/6GHz frequency band*
- Bluetooth® v5.2
- * WiFi 6E 6GHz regulatory may vary between countries.
USB
- Rear USB (Total 11 ports)
- 2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 7 x USB 3.2 Gen 2 ports (7 x Type-A)
- 1 x USB 2.0 port (1 x Type-A)
- Front USB (Total 9 ports)
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 3 x USB 2.0 headers support 6 additional USB 2.0 ports
Audio
- Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- - Impedance sense for front and rear headphone outputs
- - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- - Supports up to 32-Bit/192 kHz playback*
- Audio Features
- - Power pre-regulator reduces power input noise to ensure consistent performance
- - Premium audio capacitors
- - Dedicated audio PCB layers
- - Audio cover
- - Unique de-pop circuit
- * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
- ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
- 2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 7 x USB 3.2 Gen 2 ports (7 x Type-A)
- 1 x USB 2.0 port (1 x Type-A)
- 1 x DisplayPort (Input only)
- 1 x HDMI® port
- 1 x Wi-Fi Module
- 1 x Marvell® AQtion 10Gb Ethernet
- 1 x Intel® 2.5Gb Ethernet
- 3 x Audio jacks
- 1 x BIOS FlashBack button
Internal I/O Connectors
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 5 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V Power connectors
- 1 x 6-pin PCIe Power connector
- Storage related
- 4 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 3 x USB 2.0 headers support 6 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x CPU Over Voltage jumper
- 1 x Front Panel Audio header (AAFP)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thermal Sensor header
Special Features
- ASUS 5X PROTECTION III
- - DIGI+ VRM (- Digital power design)
- - Enhanced DRAM Overcurrent Protection
- - ESD Guards
- - LANGuard
- - Overvoltage Protection
- - Safeslot
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - M.2 Q-Latch
- - PCIe Slot Q-Release
- - Q-Connector
- - Q-DIMM
- - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- - Q-Slot
- ASUS Thermal Solution
- - M.2 heatsink backplate
- - M.2 heatsinks
- - VRM heatsink design
- ASUS EZ DIY
- - BIOS FlashBack button
- - BIOS FlashBack LED
- - ProCool
- - Pre-mounted I/O shield
- - SafeSlot
- - SafeDIMM
- AURA Sync
- - Aura RGB header
- - Addressable Gen 2 headers
- Bespoke Motherboard Design & Business Focused Features
- - 24/7 Reliability
- - Overcurrent Protection
- Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
- - Support: up to 60W charging*
- - Output: 5/9/15/20V max. 3A, PPS:3.3 21V max. 3A
- - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
- * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W
Software Features
- ASUS Exclusive Software
- Armoury Crate
- - Aura Creator
- - Aura Sync
- - Fan Xpert 4 with AI Cooling II
- - Power Saving
- - Two-Way AI Noise Cancellation
- AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- ASUS CPU-Z
- IT Management software supported
- - ASUS Control Center Express(ACCE)
- CreationFirst
- MyAsus
- Norton Anti-virus software (Free Trial version)
- ProArt Creator Hub
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
- FlexKey
BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
Manageability
- WOL by PME, PXE
Accessories
- Cables
- 1 x DisplayPort cable
- 4 x SATA 6Gb/s cables
- Miscellaneous
- 1 x ASUS Wi-Fi moving antennas
- 1 x Q-connector
- 1 x M.2 Q-Latch package for M.2 backplate
- 2 x Rubber Packages for M.2
- 1 x Rubber Package for M.2 backplate
- 1 x Screw packages for M.2 SSD
- 1 x ProArt ruler
- Documentation
- 1 x ACC Express Activation Key Card
- 1 x User guide
Operating System
- Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
